AL106-84LF - GaAs IC 900 MHz High Dynamic Range Amplifier

AL106-84LF Description

DATA SHEET AL106-84LF: GaAs IC 900 MHz High Dynamic Range Amplifier .
The AL106-84LF is a high dynamic range amplifier for 900 MHz applications.

AL106-84LF Features

* 18 dBm output power
* 32 dBm output IP3
* 1.8 dB noise figure
* Single 5 V supply
* Input and output matched to 50 Ω

📥 Download Datasheet

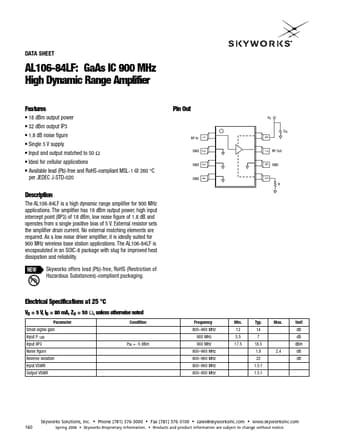

Preview of AL106-84LF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AL106-84LF
Manufacturer
Skyworks Solutions
File Size
166.79 KB
Datasheet
AL106-84LF-SkyworksSolutions.pdf
Description
GaAs IC 900 MHz High Dynamic Range Amplifier
