AL1101 Datasheet - Wavefront

24-Bit Analog-to-Digital Converter

AL1101 Features

* 24-bit conversion 107dB dynamic range (A-wt) 0.002% THD (input = -1dBFS) ClockEZ™ circuitry: internal PLL derives all necessary timing signals from one external Fs clock 64X oversampling, 5th order 1-bit modulator ¡ Applications Digital Mixing Boards Signal Processors Digital Effects Boxes Digita

AL1101 General Description

The AL1101 is a 24-bit sigma-delta stereo analog-to-digital audio converter using Wavefront’s ClockEZ™ technology. With dynamic range of 107dB, simplified interface, and low power consumption, the AL1101 (and its companion AL1201 DAC) is a best-in-class solution for 44.1kHz and 48kHz operation. Fea.

AL1101 Datasheet (190.87 KB)

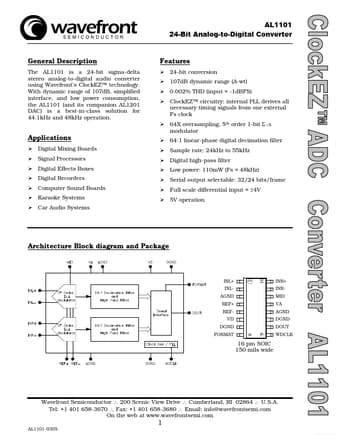

AL1101 Datasheet Preview — Preview of AL1101 PDF

Datasheet Details

Part number:

AL1101

Manufacturer:

Wavefront

File Size:

190.87 KB

Description:

24-bit analog-to-digital converter.
