AL106-84 Datasheet - Skyworks Solutions

GaAs IC 900 MHz High Dynamic Range Amplifier

AL106-84 Features

* +18 dBm Output Power

* +32 dBm Output IP3

* 1.8 dB Noise Figure

* Single +5 V Supply

* Input and Output Matched to 50 Ω

* Ideal for Cellular Applications PIN 1 0.020 (0.51 mm) MAX. 0.049 (1.24 mm) 0.066 (1.65 mm) 0.016 (0.41 mm) 0.016 MAX. ± 0.005 (0.12 mm) 0.068 (0.41 mm)

AL106-84 General Description

The AL106-84 is a high dynamic range amplifier for 900 MHz applications. The amplifier has 19 dBm output power, high input intercept point (IIP3) of 18 dBm, low noise figure of 1.8 dB and operates from a single positive bias of +5 V. External resistor sets the amplifier drain current. No external ma.

AL106-84 Datasheet (55.75 KB)

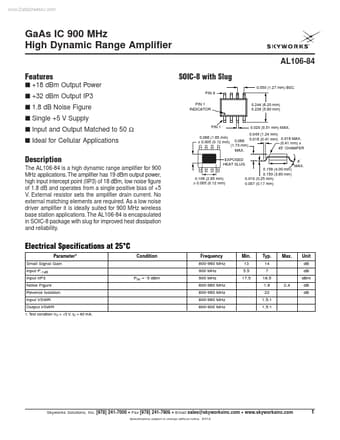

Preview of AL106-84 PDF

Datasheet Details

Part number:

AL106-84

Manufacturer:

Skyworks Solutions

File Size:

55.75 KB

Description:

Gaas ic 900 mhz high dynamic range amplifier.
