AL1692-10E - DIMMABLE LED DRIVER

AL1692-10E Description

NEW PRODUCT NOT RECOMMENDED FOR NEW DESIGN USE AL1698 AL1692-10E DIMMABLE LED DRIVER .
The DIODES™ AL1692-10E is a high performance, high power factor, high efficiency, and high current precision buck-boost and flyback dimmable LED drive.

AL1692-10E Features

* enhance LED lighting system's safety and reliability. The AL1692-10E dimming curve is compliant with the NEMA SSL6 standard. The AL1692-10E applies to a wide range of dimmers, including leading edge and trailing edge dimmer, to achieve deep dimming down to 1%. Pin Assignments (Top View) VCC 1 RT 2

AL1692-10E Applications

* The AL1692-10E topology provides an accurate output current over wide line and load regulation. The wide switching frequency operates at boundary conduction mode (BCM) to ease EMI/EMC design and testing to meet the latest regulatory standards. The AL1692-10E LED driver integrates a 700V/1A high vol

📥 Download Datasheet

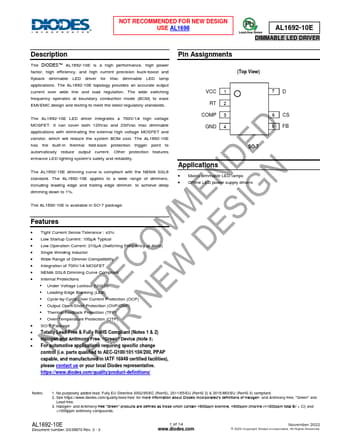

Preview of AL1692-10E PDF
