B250AQ - SCHOTTKY BARRIER RECTIFIER

Description

This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications.

Polarity Protection Diode Re-Circulating Diode Switching Diode Blocking Diode Freewheel Diode Mechanical Data

Features

  • Guard Ring Die Construction for Transient Protection.
  • Ideally Suited for Automated Assembly.
  • Low Power Loss, High Efficiency.
  • Surge Overload Rating to 50A Peak.
  • For Use in Low-Voltage, High-Frequency Inverters.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note 4).

📥 Download Datasheet

📁 Similar Datasheet

  • B250A - 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B250A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
  • B250A - Schottky Barrier Rectifier (Kexin)
  • B250A - SCHOTTKY BARRIER RECTIFIERS (TASUND)
  • B250A - Surface Mount Schottky Barrier Rectifiers (LGE)
  • B250 - 2 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Fuji Electric)
  • B250 - 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B250 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
  • B250-C1000 - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
  • B250-C1500R - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
Other Datasheets by Diodes
  • B250AE - 2.0A SCHOTTKY BARRIER RECTIFIER
  • B250AF - 2.0A SCHOTTKY BARRIER RECTIFIER
  • B250BE - 2.0A SCHOTTKY BARRIER RECTIFIER
  • B250Q - SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text

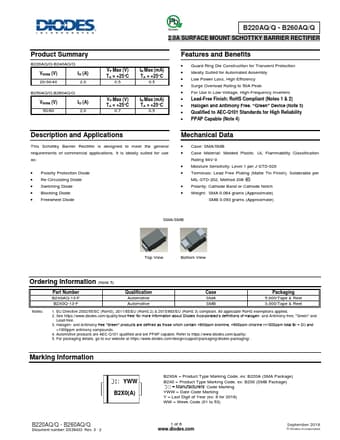

Green B220AQ/Q - B260AQ/Q 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Product Summary B220AQ/Q-B240AQ/Q VRRM (V) 20/30/40 IO (A) 2.0 B250AQ/Q,B260AQ/Q VRRM (V) 50/60 IO (A) 2.0 VF Max (V) TA = +25°C 0.5 IR Max (mA) TA = +25°C 0.5 VF Max (V) TA = +25°C 0.7 IR Max (mA) TA = +25°C 0.5 Features and Benefits  Guard Ring Die Construction for Transient Protection  Ideally Suited for Automated Assembly  Low Power Loss, High Efficiency  Surge Overload Rating to 50A Peak  For Use in Low-Voltage, High-Frequency Inverters  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
