ZHCS1000 SURFACE MOUNT SCHOTTKY BARRIER DIODE

📥 Download Datasheet Datasheet Preview Page 1

Description

ZHCS1000 SURFACE MOUNT SCHOTTKY BARRIER DIODE Product Summary VRRM (V) 40 IO (A) 1 VF(TYP) @ 1A (V) 0.425 Applications * DC-DC converters

📥 Download Datasheet

Preview of ZHCS1000 PDF

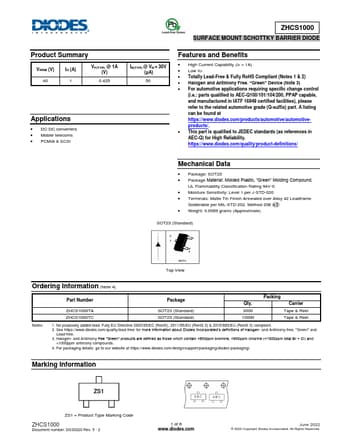

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ZHCS1000
Manufacturer
DIODES ↗
File Size
521.57 KB
Datasheet
ZHCS1000-Diodes.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER DIODE

Features

* High Current Capability (IF = 1A)
* Low VF
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

Applications

* DC-DC converters
* Mobile telecoms
