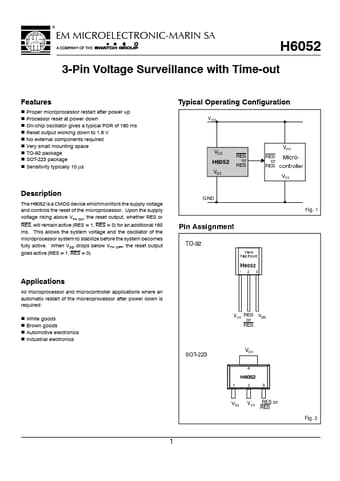

H6052 surveillance equivalent, 3-pin voltage surveillance.
n n n n n n n n n Proper microprocessor restart after power up Processor reset at power down On-chip oscillator gives a typical POR of 160 ms Reset output working down to.
All microprocessor and microcontroller applications where an automatic restart of the micreoprocessor after power down i.
The H6052 is a CMOS device whichmonitors the supply voltage and controls the reset of the microprocessor. Upon the supply voltage rising above VTH ON, the reset output, whether RES or RES, will remain active (RES = 1, RES = 0) for an additional 160 m.
