H6060 - Self Recovering Watchdog

Datasheet Summary

Description

The H6060 is a monolithic low-power CMOS device combining a programmable timer and a series of voltage comparators on the same chip.

The device is specially suited for watchdog functions such as microprocessor and supply voltage monitoring.

EM Microelectronic - MARIN SA

📥 Download Datasheet

Datasheet Details

Part number	H6060
Manufacturer	EM Microelectronic - MARIN SA
File Size	487.26 KB
Description	Self Recovering Watchdog
Datasheet	H6060 Datasheet
Additional preview pages of the H6060 datasheet.

📁 Similar Datasheet

H6061 - 3V Self Recovering Watchdog (EM Microelectronic)
H603AL - N-Channel MOSFET (Hi-Sincerity Mocroelectronics)
H6052 - 3-Pin Voltage Surveillance (ETC)

Other Datasheets by EM Microelectronic - MARIN SA

H6006 - Failsafe Watchdog

Full PDF Text Transcription

Click to expand full text

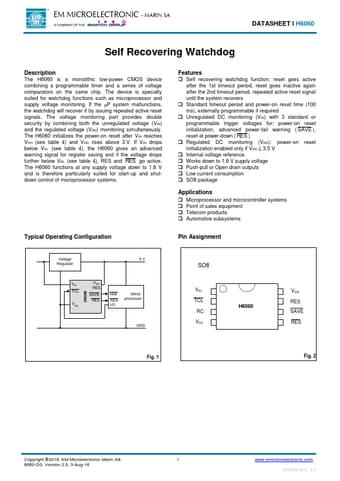

EM MICROELECTRONIC - MARIN SA DATASHEET Ɩ H6060 Self Recovering Watchdog Description The H6060 is a monolithic low-power CMOS device combining a programmable timer and a series of voltage comparators on the same chip. The device is specially suited for watchdog functions such as microprocessor and supply voltage monitoring. If the P system malfunctions, the watchdog will recover it by issuing repeated active reset signals. The voltage monitoring part provides double security by combining both the unregulated voltage (VIN) and the regulated voltage (VDD) monitoring simultaneously. The H6060 initializes the power-on reset after VIN reaches VSH (see table 4) and VDD rises above 3.V.
