H6052 - 3-Pin Voltage Surveillance

Datasheet Summary

Description

The H6052 is a CMOS device whichmonitors the supply voltage and controls the reset of the microprocessor.

Upon the supply voltage rising above VTH ON, the reset output, whether RES or RES, will remain active (RES = 1, RES = 0) for an additional 160 ms.

Features

  • n n n n n n n n n Proper microprocessor restart after power up Processor reset at power down On-chip oscillator gives a typical POR of 160 ms Reset output working down to 1.6 V No external components required Very small mounting space TO-92 package SOT-223 package Sensitivity typically 10 µs Typical Operating Configuration.

📥 Download Datasheet

Datasheet preview – H6052

Datasheet Details

Part number H6052
Manufacturer ETC
File Size 132.37 KB
Description 3-Pin Voltage Surveillance
Datasheet download datasheet H6052 Datasheet
Additional preview pages of the H6052 datasheet.

📁 Similar Datasheet

  • H6006 - Failsafe Watchdog (EM Microelectronic - MARIN SA)
  • H603AL - N-Channel MOSFET (Hi-Sincerity Mocroelectronics)
  • H6060 - Self Recovering Watchdog (EM Microelectronic - MARIN SA)
  • H6061 - 3V Self Recovering Watchdog (EM Microelectronic)
Other Datasheets by ETC

    Full PDF Text Transcription

    Click to expand full text

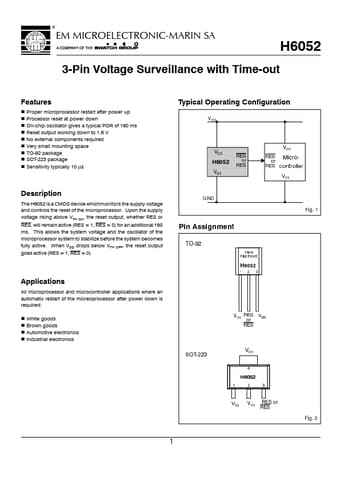

    EM MICROELECTRONIC-MARIN SA H6052 3-Pin Voltage Surveillance with Time-out Features n n n n n n n n n Proper microprocessor restart after power up Processor reset at power down On-chip oscillator gives a typical POR of 160 ms Reset output working down to 1.6 V No external components required Very small mounting space TO-92 package SOT-223 package Sensitivity typically 10 µs Typical Operating Configuration Description The H6052 is a CMOS device whichmonitors the supply voltage and controls the reset of the microprocessor. Upon the supply voltage rising above VTH ON, the reset output, whether RES or RES, will remain active (RES = 1, RES = 0) for an additional 160 ms.
