H6061 3V Self Recovering Watchdog

📥 Download Datasheet  Datasheet Preview Page 1

Description

EM MICROELECTRONIC - MARIN SA DATASHEET Ɩ H6061 3V Self Recovering Watchdog .
The H6061 is a combined initialiser, watchdog and voltage monitor.

📥 Download Datasheet

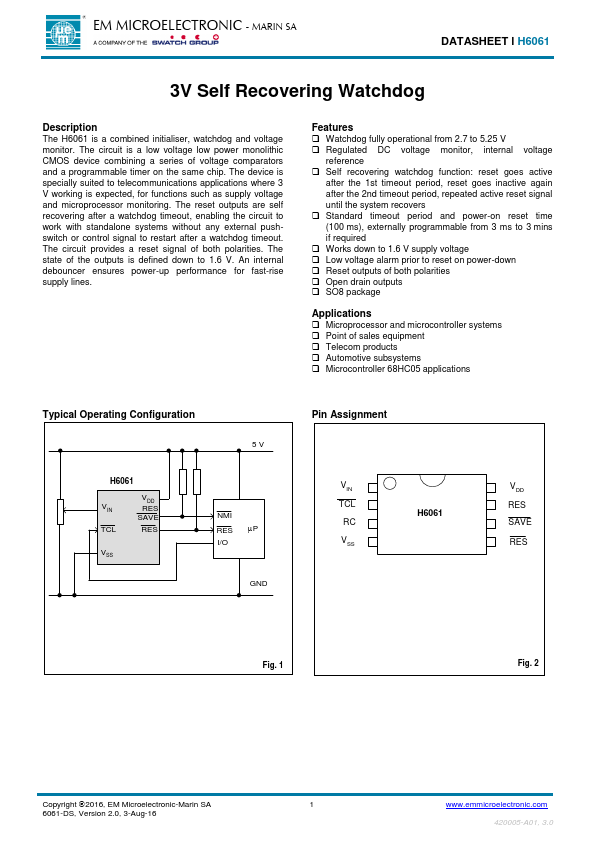

Preview of H6061 PDF

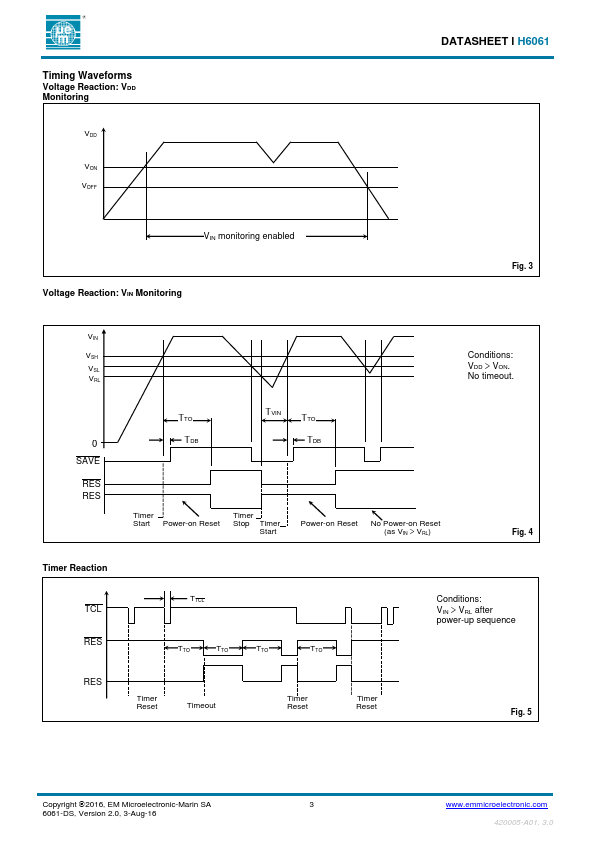

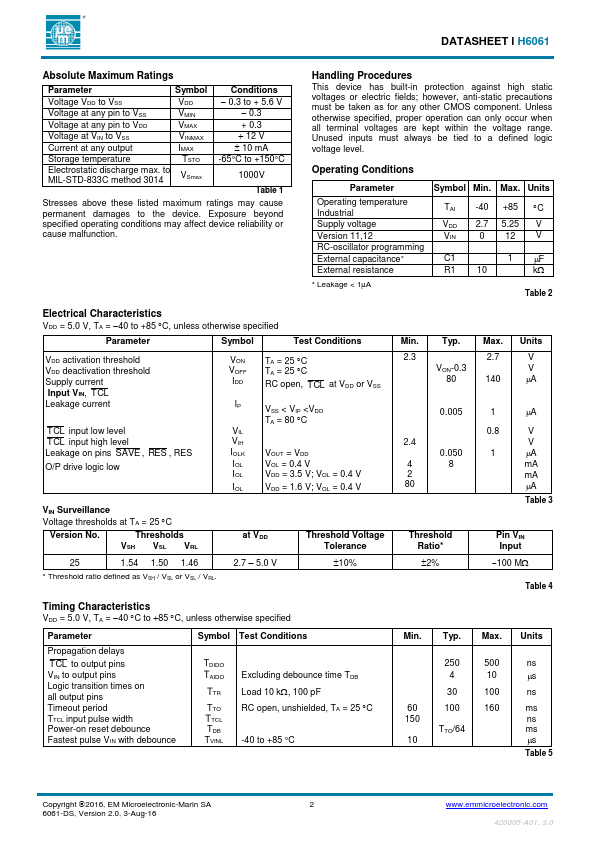

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
H6061
Manufacturer
EM Microelectronic
File Size
533.09 KB
Datasheet
H6061-EMMicroelectronic.pdf
Description
3V Self Recovering Watchdog

Features

*  Watchdog fully operational from 2.7 to 5.25 V  Regulated DC voltage monitor, internal voltage reference  Self recovering watchdog function: reset goes active after the 1st timeout period, reset goes inactive again after the 2nd timeout period, repeated active reset signal until the system recove

Applications

* where 3 V working is expected, for functions such as supply voltage and microprocessor monitoring. The reset outputs are self recovering after a watchdog timeout, enabling the circuit to work with standalone systems without any external pushswitch or control signal to restart after a watchdog timeou
