74ACT377 Datasheet - Fairchild Semiconductor

Octal D-Type Flip-Flop

74ACT377 Features

* s ICC reduced by 50% s Ideal for addressable register applications s Clock enable for address and data synchronization applications s Eight edge-triggered D-type flip-flops s Buffered common clock s Outputs source/sink 24 mA s See 273 for master reset version s See 373 for transparent latch version

74ACT377 General Description

The AC/ACT377 has eight edge-triggered, D-type flip-flops with individual D inputs and Q outputs. The common buffered Clock (CP) input loads all flip-flops simultaneously, when the Clock Enable (CE) is LOW. The register is fully edge-triggered. The state of each D input, one setup time before the LO.

74ACT377 Datasheet (124.75 KB)

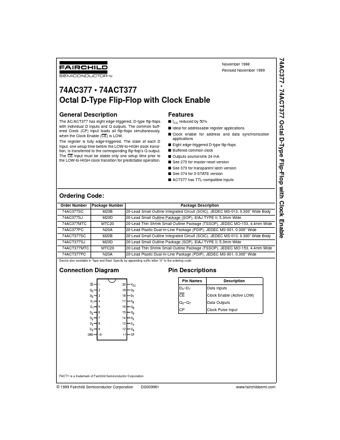

74ACT377 Datasheet Preview — Preview of 74ACT377 PDF

Datasheet Details

Part number:

74ACT377

Manufacturer:

Fairchild Semiconductor

File Size:

124.75 KB

Description:

Octal d-type flip-flop.
74AC377 74ACT377 Octal D-Type Flip-Flop with Clock Enable November 1988 Revised November 1999 74AC377 74ACT377 Octal D-Type Flip.
