FAN7081_GF085 - High Side Gate Driver

Description

The FAN7081_GF085 is a high-side gate drive IC designed for high voltage and high speed driving of MOSFET or IGBT, which operates up to 600V.

Features

  • Qualified to AEC Q100.
  • Floating channel designed for bootstrap operation up fully operational to + 600V.
  • Tolerance to negative transient voltage on VS pin.
  • dV/dt immune.
  • Gate drive supply range from 10V to 20V.
  • Under-voltage lockout.
  • CMOS Schmit-triggered inputs with pull-up.
  • High side output out of phase with input (Inverted input) Typical.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FAN7080-GF085 Half Bridge Gate Driver ON Semiconductor
FAN7083-GF085 High Side Gate Driver ON Semiconductor
FAN7085-GF085 High Side Gate Driver ON Semiconductor
FAN7171-F085 High-Side Automotive Gate Driver IC ON Semiconductor
FAN73611 Single-Channel High-Side Gate Driver ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
FAN7081_F085 High Side Gate Driver
FAN7081 High Side Gate Driver
FAN7080 Half Bridge Gate Driver
FAN7080_F085 Half Bridge Gate Driver
FAN7080_GF085 Half Bridge Gate Driver

Full PDF Text Transcription

Click to expand full text

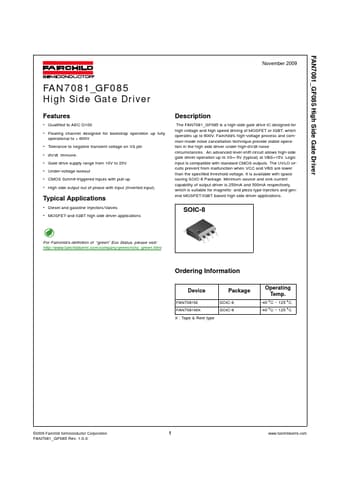

FAN7081_GF085 High Side Gate Driver November 2009 FAN7081_GF085 High Side Gate Driver Features • Qualified to AEC Q100 • Floating channel designed for bootstrap operation up fully operational to + 600V • Tolerance to negative transient voltage on VS pin • dV/dt immune. • Gate drive supply range from 10V to 20V • Under-voltage lockout • CMOS Schmit-triggered inputs with pull-up • High side output out of phase with input (Inverted input) Typical Applications • Diesel and gasoline Injectors/Valves • MOSFET-and IGBT high side driver applications Description The FAN7081_GF085 is a high-side gate drive IC designed for high voltage and high speed driving of MOSFET or IGBT, which operates up to 600V.
