2301 - P-Channel Enhancement Mode Power MOSFET

Datasheet Summary

Description

The 2301 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

This device is suitable for use as a load switch or in PWM applications.

Features

  • VDSS RDS(ON) RDS(ON) ID @-4.5V(Typ) @-2.5V(Typ) -20V 48mΩ 61 mΩ -3 A.
  • High Power and current handing capability.
  • RoHS Compliant.
  • Surface Mount Package.

📥 Download Datasheet

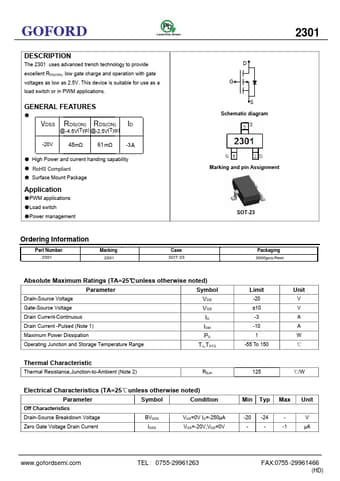

Datasheet preview – 2301
