KBL406 - Silicon Bridge Rectifiers

Download the KBL406 datasheet PDF (KBL4005 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon bridge rectifiers.

Features

  • z Rating to 1000V PRV z Surge overload rating to 150 Amperes peak z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 KBL4005--KBL410 Pb Lead-free Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol KBL 4005 KBL 401 KBL 402 Maximum recurrent peak reverse voltage VRRM 50 100 200 Maximum RMS voltage VRMS 35 70 140 Maximum DC blocking v.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KBL4005-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • KBL406 - Silicon Bridge Rectifiers (LGE)
  • KBL406 - Silicon Bridge Rectifiers (Taiwan Semiconductor)
  • KBL406 - SILICON BRIDGE RECTIFIERS (EIC)
  • KBL406 - 4.0A Single-Phase Silicon Bridge Rectifier (SEP ELECTRONIC)
  • KBL406 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Sangdest Microelectronics)
  • KBL406 - SINGLE PHASE SILICON BRIDGE RECTIFIER (KD)
  • KBL406 - SINGLE-PHASE BRIDGE RECTIFIER (Suntan)
  • KBL406 - Bridge Rectifier (First Silicon)
  • KBL406 - GLASS PASSIVATED BRIDGE RECTIFIERS (HY)
  • KBL406 - BRIDGE RECTIFIER (JINAN JINGHENG)
Other Datasheets by GME
  • KBL4005 - Silicon Bridge Rectifiers
  • KBL401 - Silicon Bridge Rectifiers
  • KBL402 - Silicon Bridge Rectifiers
  • KBL403 - Silicon Bridge Rectifiers
  • KBL404 - Silicon Bridge Rectifiers
  • KBL408 - Silicon Bridge Rectifiers
  • KBL410 - Silicon Bridge Rectifiers
  • KBL005 - Silicon Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

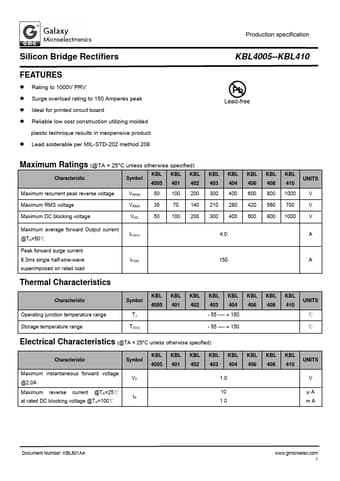

Production specification Silicon Bridge Rectifiers FEATURES z Rating to 1000V PRV z Surge overload rating to 150 Amperes peak z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 KBL4005--KBL410 Pb Lead-free Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol KBL 4005 KBL 401 KBL 402 Maximum recurrent peak reverse voltage VRRM 50 100 200 Maximum RMS voltage VRMS 35 70 140 Maximum DC blocking voltage VDC 50 100 200 KBL 403 300 210 300 KBL 404 400 280 400 KBL 406 600 420 600 KBL 408 800 560 800 KBL 410 1000 UNITS V 700 V 1000 V Maximum average forward Output current @TA=50℃ Peak forward surge current 8.
