MP1501, MP15005 Silicon Bridge Rectifiers

MP1501 Description

Production specification Silicon Bridge Rectifiers MP15005 *MP1510 .

MP1501 Features

* z Rating to 1000V PRV z Surge overload rating to 300 Amperes peak z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 Maximum Ratings (@TA = 25°C unless otherwise specified)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP1501, MP15005. Please refer to the document for exact specifications by model.

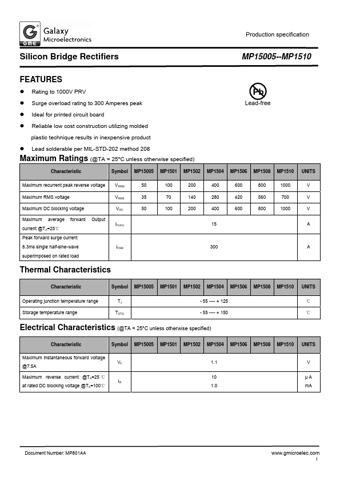

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP1501, MP15005
Manufacturer
GME
File Size
145.57 KB
Datasheet
MP15005-GME.pdf
Description
Silicon Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: MP1501, MP15005.
Please refer to the document for exact specifications by model.
