9435 - P-Channel MOSFET

Description

The 9435 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

This device is suitable for use as a load switch or in PWM applications.

Features

  • VDSS RDS(ON) RDS(ON) ID @ -4.5V(Typ) @ -10V(Typ) -30V 73mΩ 48mΩ -5.1 A.
  • High Power and current handing capability.
  • Lead free product is acquired.
  • Surface Mount Package.

📥 Download Datasheet

Datasheet Details

Part number 9435
Manufacturer GOFORD
File Size 1.25 MB
Description P-Channel MOSFET
Datasheet download datasheet 9435 Datasheet

📁 Similar Datasheet

  • 9435 - P-Channel MOSFET (Tuofeng Semiconductor)
  • 9435 - P-channel Enhancement Mode Power MOSFET (JIEJIE)
  • 9435A - -30V P-Channel Enhancement Mode MOSFET (HUAXUANYANG)
  • 9435BDY - P-Channel MOSFET (SECOS)
  • 9435GH - AP9435GH (Advanced Power Electronics)
  • 9435GM - SSM9435GM (SSM)
  • 9435GM - P-Channel 30V MOSFET (VBsemi)
  • 943NW - LCD-Monitor manual (Samsung)
  • 943NWX - LCD-Monitor manual (Samsung)
Other Datasheets by GOFORD

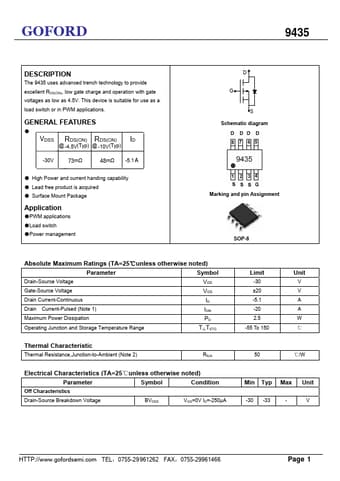

    Full PDF Text Transcription

    Click to expand full text
    GOFORD 9435 DESCRIPTION The 9435 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitable for use as a load switch or in PWM applications. GENERAL FEATURES ● VDSS RDS(ON) RDS(ON) ID @ -4.5V(Typ) @ -10V(Typ) -30V 73mΩ 48mΩ -5.
