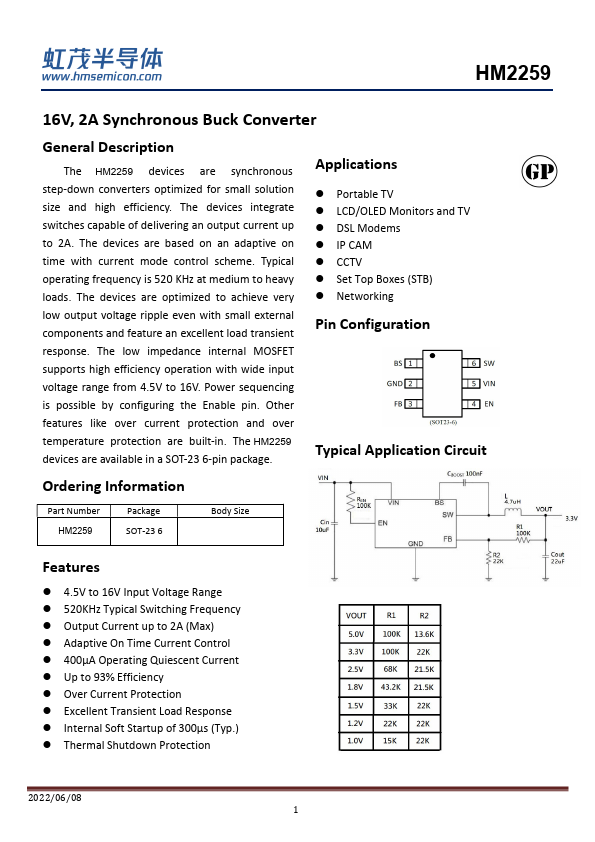

HM2259 16V 2A Synchronous Buck Converter

The HM2259 devices are synchronous step-down converters optimized for small solution size and high efficiency. The devices integrate switches capable of delivering an output current up to 2A. The devices are based on an adaptive on time with current mode control scheme. Typical operating frequency i.

HM2259 Features

* like over current protection and over temperature protection are built-in. The HM2259 devices are available in a SOT-23 6-pin package. Applications

* Portable TV

* LCD/OLED Monitors and TV

* DSL Modems

* IP CAM

* CCTV

* Set Top Boxes (STB)

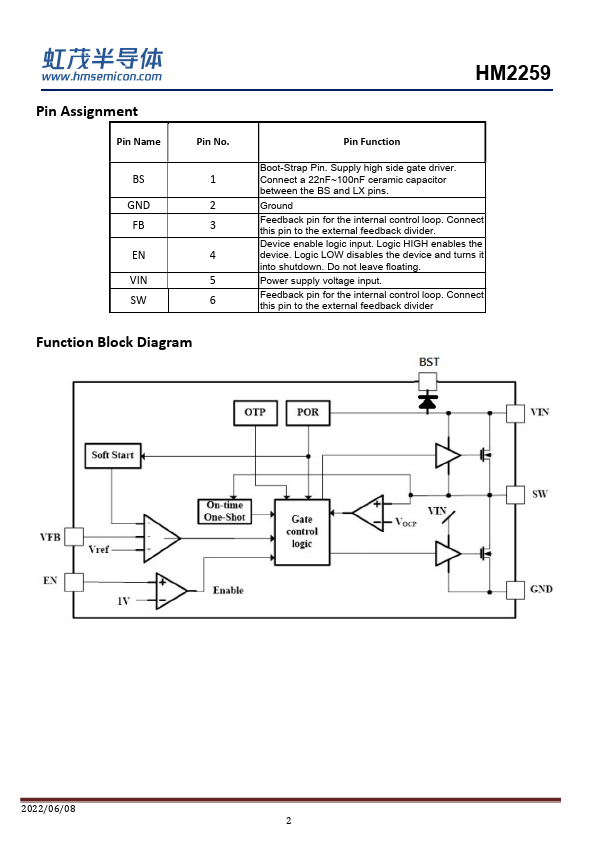

* Networking Pin Configuration

HM2259 Datasheet (2.03 MB)

HM2259 Datasheet Preview — Preview of HM2259 PDF

Datasheet Details

Part number:

HM2259

Manufacturer:

H&M Semiconductor

File Size:

2.03 MB

Description:

16v 2a synchronous buck converter.
