5P4M Datasheet - HAOPIN

5P4M, SCRs

Standard gate triggering SCR is fully isolated package suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system. Symbol Sim.

5P4M-HAOPIN.pdf

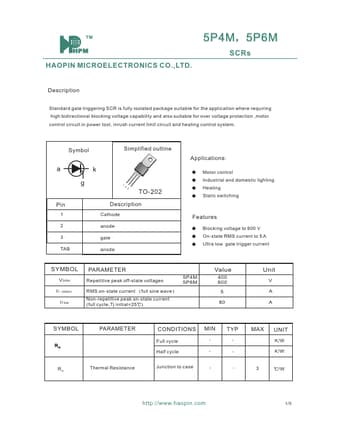

5P4M Datasheet Preview — Preview of 5P4M PDF

Datasheet Details

Part number:

5P4M

Manufacturer:

HAOPIN

File Size:

292.26 KB

Description:

SCRs

5P4M Features

* Blocking voltage to 600 V On-state RMS current to 5 A Ultra low gate trigger current SYMBOL VDRM IT RMS ITSM PARAMETER Repetitive peak off-state voltages RMS on-state current full sine wave Non-repetitive peak on-state current (full cycle,Tj initial=25 ) 5P4M 5P6M Value 400 600 5 80 Unit V A A
