HLMP-3962 - (HLMP-3xxx) T-1 3/4 (5 mm) Diffused LED Lamps

Download the HLMP-3962 datasheet PDF (HLMP-3507_Hewlett included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (hlmp-3xxx) t-1 3/4 (5 mm) diffused led lamps.

Description

This family of T-13/4 tinted, diffused LED lamps is widely used in general purpose indicator applications.

Diffusants, tints, and optical design are balanced to yield superior light output and wide viewing angles.

Features

  • High Intensity.
  • Choice of 4 Bright Colors High Efficiency Red Orange Yellow High Performance Green.
  • Popular T-13/4 Diameter Package.
  • Selected Minimum Intensities.
  • Wide Viewing Angle.
  • General Purpose Leads.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HLMP-3507_Hewlett-Packard.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HLMP-3962
Manufacturer Hewlett-Packard
File Size 348.35 KB
Description (HLMP-3xxx) T-1 3/4 (5 mm) Diffused LED Lamps
Datasheet download datasheet HLMP-3962 Datasheet

📁 Similar Datasheet

  • HLMP-3962 - LED Lamps (HP)
  • HLMP-3962 - LED Lamps (AVAGO)
  • HLMP-3960 - Ultra-Bright LED Lamps (AVAGO)
  • HLMP-3907 - Ultra-Bright LED Lamps (AVAGO)
  • HLMP-3950 - Ultra-Bright LED Lamps (AVAGO)
  • HLMP-3950A - T-1 3/4 (5mm) SOLID STATE LAMPS (Fairchild Semiconductor)
  • HLMP-3300 - T-1 3/4 (5 mm) SOLID STATE LAMPS (Fairchild Semiconductor)
  • HLMP-3300 - LED Lamps (HP)
  • HLMP-3301 - T-1 3/4 (5 mm) SOLID STATE LAMPS (Fairchild Semiconductor)
  • HLMP-3301 - LED Lamps (AVAGO)
Other Datasheets by Hewlett-Packard
  • HLMP-3301 - (HLMP-3xxx) T-1 3/4 (5 mm) Diffused LED Lamps
  • HLMP-3401 - (HLMP-3xxx) T-1 3/4 (5 mm) Diffused LED Lamps
  • HLMP-3507 - (HLMP-3xxx) T-1 3/4 (5 mm) Diffused LED Lamps
  • HLMP-3762 - (HLMP-3xxx) T-1 3/4 (5 mm) Diffused LED Lamps
  • HLMP-3862 - (HLMP-3xxx) T-1 3/4 (5 mm) Diffused LED Lamps
  • HLMP-1250 - (HLMP-1x50) Low Profile T-1 (3 mm) LED Lamps
  • HLMP-1350 - (HLMP-1x50) Low Profile T-1 (3 mm) LED Lamps
  • HLMP-1550 - (HLMP-1x50) Low Profile T-1 (3 mm) LED Lamps

Full PDF Text Transcription

Click to expand full text

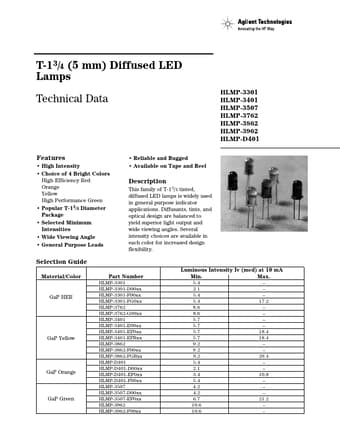

www.DataSheet4U.com T-13/4 (5 mm) Diffused LED Lamps Technical Data HLMP-3301 HLMP-3401 HLMP-3507 HLMP-3762 HLMP-3862 HLMP-3962 HLMP-D401 • Reliable and Rugged • Available on Tape and Reel Features • High Intensity • Choice of 4 Bright Colors High Efficiency Red Orange Yellow High Performance Green • Popular T-13/4 Diameter Package • Selected Minimum Intensities • Wide Viewing Angle • General Purpose Leads Description This family of T-13/4 tinted, diffused LED lamps is widely used in general purpose indicator applications. Diffusants, tints, and optical design are balanced to yield superior light output and wide viewing angles. Several intensity choices are available in each color for increased design flexibility.
