HN27C4096ACC - 262144-word x 16-bit CMOS UV Erasable and Programmable ROM

Download the HN27C4096ACC datasheet PDF (HN27C4096AG included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 262144-word x 16-bit cmos uv erasable and programmable rom.

Description

The Hitachi HN27C4096AG/ACC is a 4-Mbit ultraviolet erasable and electrically programmable ROM, featuring high speed and low power dissipation.

Fabricated on advanced fine process and high speed circuitry technique, the HN27C4096A makes high speed access time possible.

Features

  • High speed: Access time 100 ns/120 ns/150 ns (max).
  • Low power dissipation: Standby mode; 5 µW (typ) Active mode; 35 mW/MHz (typ).
  • Fast high reliability page programming and fast high-reliability programming Programming voltage; +12.5 V D. C. Program time; 3.5 sec (min) (Theoretical in Page programming).
  • Inputs and outputs TTL compatible during both.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HN27C4096AG-Hitachi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • HN27C4096ACC - CMOS 4M-Bit UV EPROM (ETC)
  • HN27C4096A - 4M UV and OTP EPROM (Hitachi Semiconductor)
  • HN27C4096AH - 4M UV and OTP EPROM (Hitachi Semiconductor)
  • HN27C4096 - 4M UV and OTP EPROM (Hitachi Semiconductor)
  • HN27C4096H - 4M UV EPROM (Hitachi Semiconductor)
  • HN27C4096HCC - 262144-word x 16-Bit CMOS UV EPROM (Hitachi Semiconductor)
  • HN27C4096HG - 262144-word x 16-Bit CMOS UV EPROM (Hitachi Semiconductor)
  • HN27C4000G - 524288-Word x 8-Bit/262144-Word X 16-Bit CMOS UV Erasable and Programmable ROM (Hitachi Semiconductor)
  • HN27C1024H - 1M UV and OTP EPROM (Renesas Technology)
  • HN27C1024HCC-10 - CMOS 1M-Bit EPROM (ETC)
Other Datasheets by Hitachi

Full PDF Text Transcription

Click to expand full text

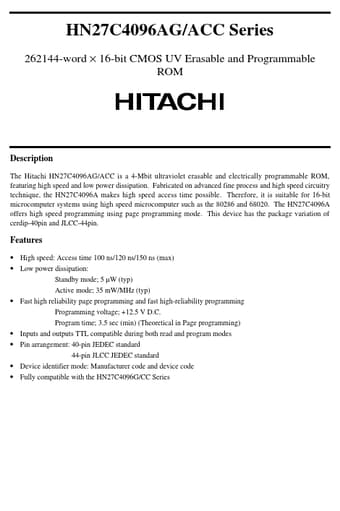

HN27C4096AG/ACC Series 262144-word × 16-bit CMOS UV Erasable and Programmable ROM Description The Hitachi HN27C4096AG/ACC is a 4-Mbit ultraviolet erasable and electrically programmable ROM, featuring high speed and low power dissipation. Fabricated on advanced fine process and high speed circuitry technique, the HN27C4096A makes high speed access time possible. Therefore, it is suitable for 16-bit microcomputer systems using high speed microcomputer such as the 80286 and 68020. The HN27C4096A offers high speed programming using page programming mode. This device has the package variation of cerdip-40pin and JLCC-44pin.
