M101GWWF-R0 Datasheet - IVO

M101GWWF-R0 Color Active Matrix Liquid Crystal Display

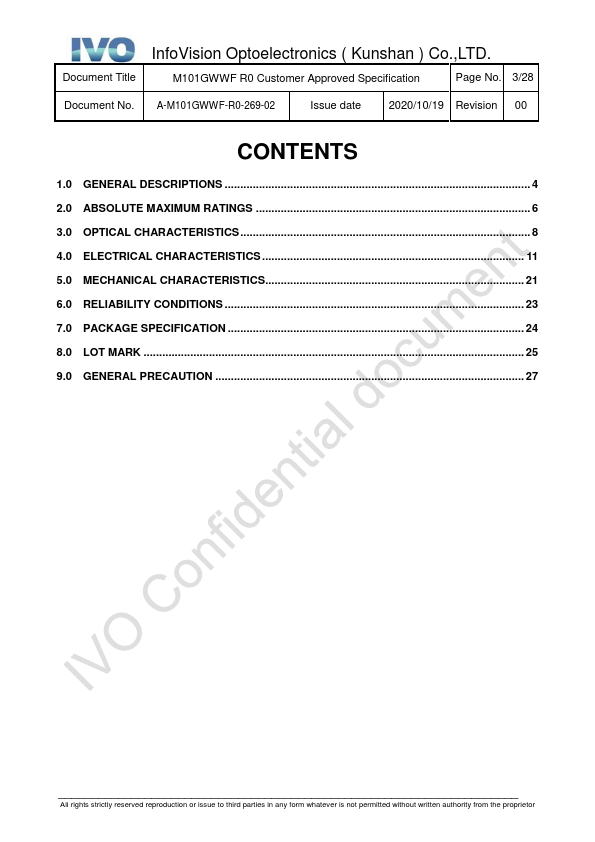

4 2.0 ABSOLUTE MAXIMUM RATINGS 6 3.0 OPTICAL CHARACTERISTICS 8 4.0 ELECTRICAL CHARACTERISTICS 11 5.0 MECHANICAL CHARACTERISTICS 21 6.0 RELIABILITY CONDITIONS 23 7.0 PACKAGE SPECIFICATION 24 8.0 LOT MARK 25 9.0 GENERAL PRECAUTION 27 ___________________________________________________________.

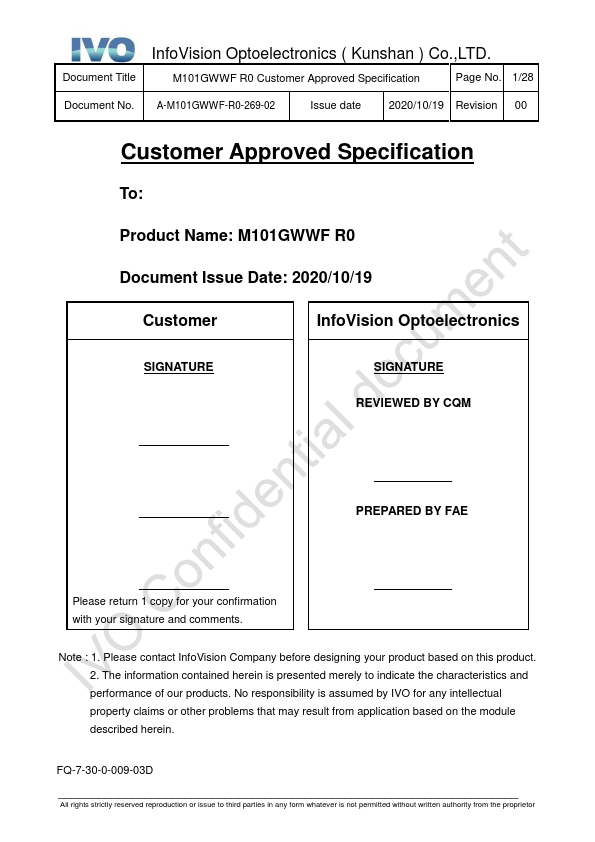

InfoVision Optoelectronics ( Kunshan ) Co.,LTD. Document Title M101GWWF R0 Customer Approved Specification Page No. 1/28 Document No. A-M101GWWF-R0-269-02 Issue date 2020/10/19 Revision 00 Customer Approved Specification To: Product Name: M101GWWF R0 Document Issue Date: 2020/10/19 Customer InfoVision Optoelectronics SIGNATURE SIGNATURE REVIEWED BY CQM PREPARED BY FAE Please return 1 copy for your confirmation with your signature and comments. Note : 1. Please contact InfoVision Comp.

M101GWWF-R0 Features

* Supported WXGA Resolution

* LVDS Interface

* Wide View Angle

* Compatible with RoHS Standard 1.3 Product Summary Items Specifications Unit Screen Diagonal 10.1 inch Active Area (H x V) 216.96 x135.60 mm Number of Pixels (H x V) 1280x800 - Pixel Pitch (H x V) 0.16
