* / Advantages:

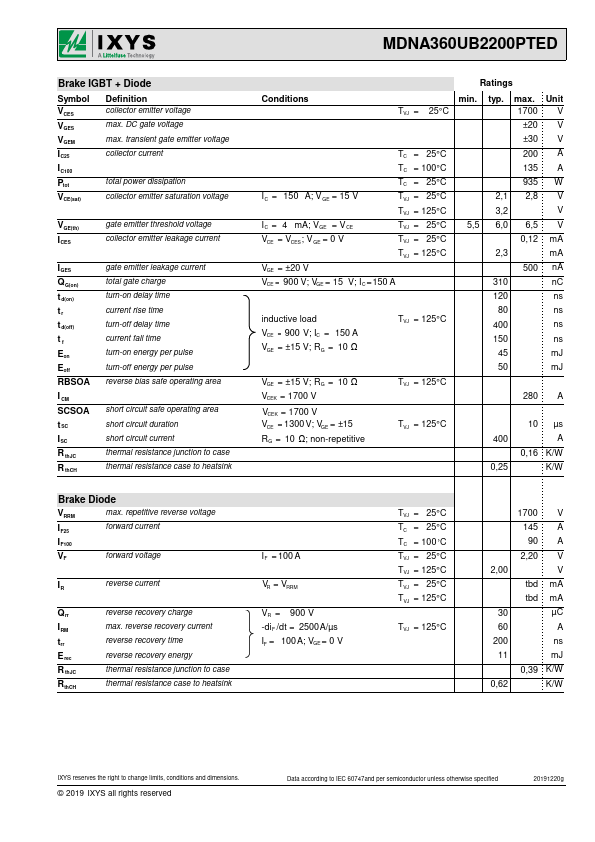

* Brake with Infineon IGBT³ 47-50 29 28 23-25 Applications:
* 3~ Rectifier with brake unit for drive inverters Backside: isolated Package: E2-Pack
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* PressFit-Pins for PCB mounting
MDNA360UB2200PTED Datasheet (438.23 KB)
MDNA360UB2200PTED
IXYS
438.23 KB

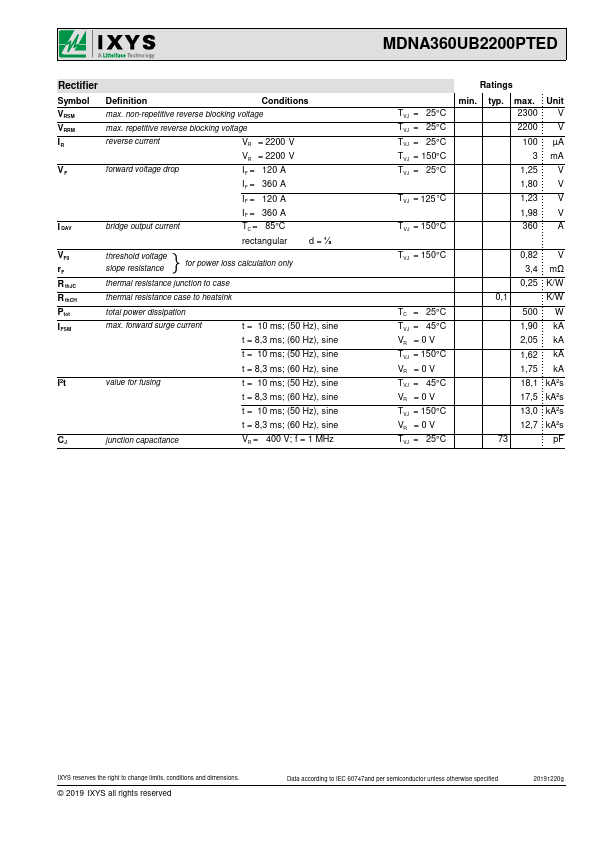

High voltage standard rectifier.

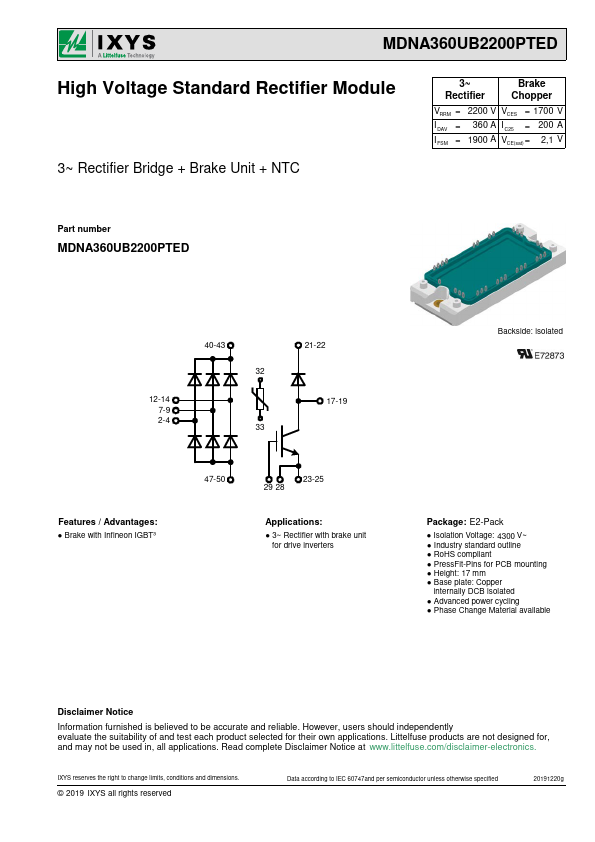

MDNA360UB2200PTED High Voltage Standard Rectifier Module 3~ Rectifier Bridge + Brake Unit + NTC 3~ Rectifier Brake Chopper VRRM = I DAV = I FSM = .
