KBL605, KBL6005 (KBL6005 - KBL607) SINGLE PHASE SILICON BRIDGE RECTIFIER

KBL605 Description

KBL6005 THRU KBL607 Reverse Voltage - 50 to 1000 Volts SINGLE PHASE SILICON BRIDGE RECTIFIER Forward Current - 6.0 Ampere .

KBL605 Features

* Ideal for printed circuit board Surge overload rating: 150A peak High case dielectric strength High temperature soldering guaranteed: 260°C/10 seconds at 5lbs. (2.3kg) tension KBL / RS .76 8(19 .5) .728(18.5) .587(14.9) .5 47(13 .9) .640(16.3) .600(15.2) MECHANICAL DATA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBL605, KBL6005. Please refer to the document for exact specifications by model.

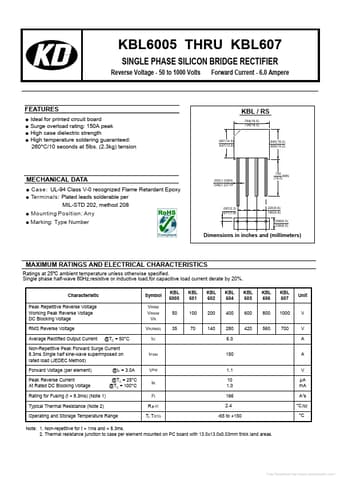

datasheet Preview Page 2

Datasheet Details

Part number
KBL605, KBL6005
Manufacturer
KD
File Size
903.99 KB
Datasheet
KBL6005_KD.pdf
Description
(KBL6005 - KBL607) SINGLE PHASE SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: KBL605, KBL6005.
Please refer to the document for exact specifications by model.
