BC868 - NPN Medium Power Transistor

Features

  • High current Two current gain selections 1.2 W total power dissipation. Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage (open emitter) VCBO 32 V Collector-emitter voltage (open base) VCEO 20 V Emitter-base voltage (open collector) VEBO 5 V Collector current IC 1 A Peak collector current ICM 2 A Peak base current IBM 200 mA Total power dissipation.
  • 1 and.
  • 2 0.5 W.
  • 1 and.
  • 3 Ptot 0.85 W.
  • 1 and.
  • 4 1.2 W Sto.

📥 Download Datasheet

Datasheet preview – BC868

Datasheet Details

Part number BC868
Manufacturer Kexin
File Size 49.32 KB
Description NPN Medium Power Transistor
Datasheet download datasheet BC868 Datasheet
Additional preview pages of the BC868 datasheet.

📁 Similar Datasheet

  • BC868 - 2A NPN medium power transistors (nexperia)
  • BC868 - NPN medium power transistor (NXP)
  • BC868 - NPN medium power Transistor (GME)
  • BC868 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • BC868 - NPN SILICON PLANAR MEDIUM POWER TRANSISTOR (Zetex Semiconductors)
  • BC868 - NPN Transistor (WILLAS)
  • BC868 - NPN Transistor (BLUECOLOUR)
  • BC868-10 - NPN Medium Power Transistors (MCC)
  • BC868-16 - NPN Medium Power Transistors (MCC)
  • BC868-25 - NPN Medium Power Transistors (MCC)
Other Datasheets by Kexin
  • BC860 - PNP Transistors
  • BC860B - PNP Transistors
  • BC860C - PNP Transistors
  • BC869 - PNP Medium Power Transistor
  • BC846AW - NPN General Purpose Transistor
  • BC846BW - NPN General Purpose Transistor
  • BC846W - NPN General Purpose Transistor
  • BC847AW - NPN General Purpose Transistor

Full PDF Text Transcription

Click to expand full text

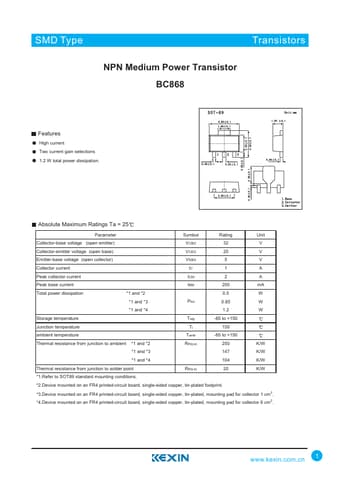

SMD Type Transistors NPN Medium Power Transistor BC868 Features High current Two current gain selections 1.2 W total power dissipation. Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage (open emitter) VCBO 32 V Collector-emitter voltage (open base) VCEO 20 V Emitter-base voltage (open collector) VEBO 5 V Collector current IC 1 A Peak collector current ICM 2 A Peak base current IBM 200 mA Total power dissipation *1 and *2 0.5 W *1 and *3 Ptot 0.85 W *1 and *4 1.
