LTP-1157AHR Datasheet - LITE-ON

LTP-1157AHR LED Display

By Meg Huang Date DD/MM/YYYY 04/15/2000 Above data for PD and Customer tracking only - NPPR Original Spec Meg Huang 1.Add AllnGaP dice in description at page 2 A 2.Update note 2 of Electrical/Optical Characteristics at page 5 William Lin 3.Correct typical Electrical/Optical Characteristics .

LTP-1157AHR Features

* ＊ 1.24 inch (31.5 mm) MATRIX HEIGHT. ＊ LOW POWER REQUIREMENT. ＊ SINGLE PLANE, WIDE VIEWING ANGLE. ＊ SOLID STATE RELIABILITY. ＊ 5×7 ARRAY WITH X-Y SELECT. ＊ COMPATIBLE WITH USASCII AND EBCDIC CODES. ＊ STACKABLE HORIZONTALLY. ＊ CATEGORIZED FOR LUMINOUS INTENSITY. ＊ LEAD-FREE PACKAGE (ACCORDING TO ROHS

LTP-1157AHR Datasheet (293.08 KB)

Preview of LTP-1157AHR PDF

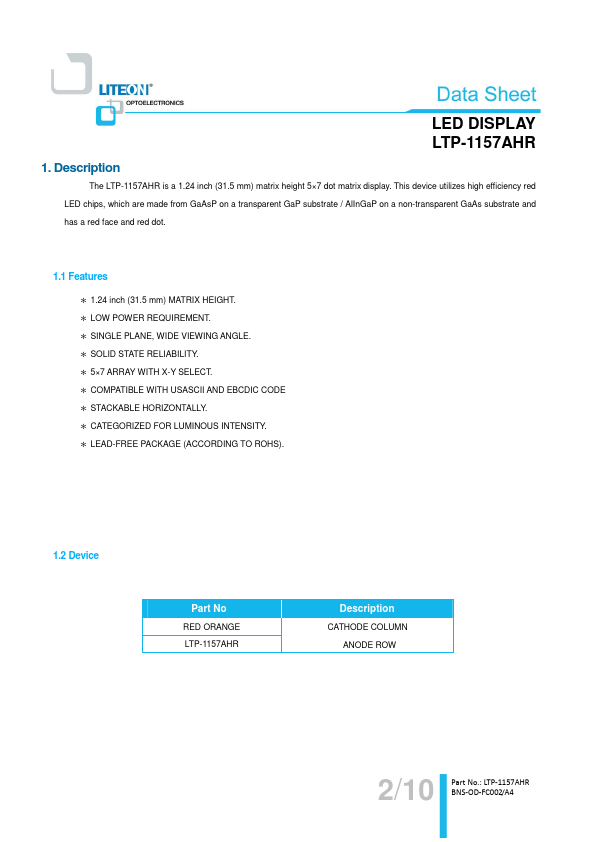

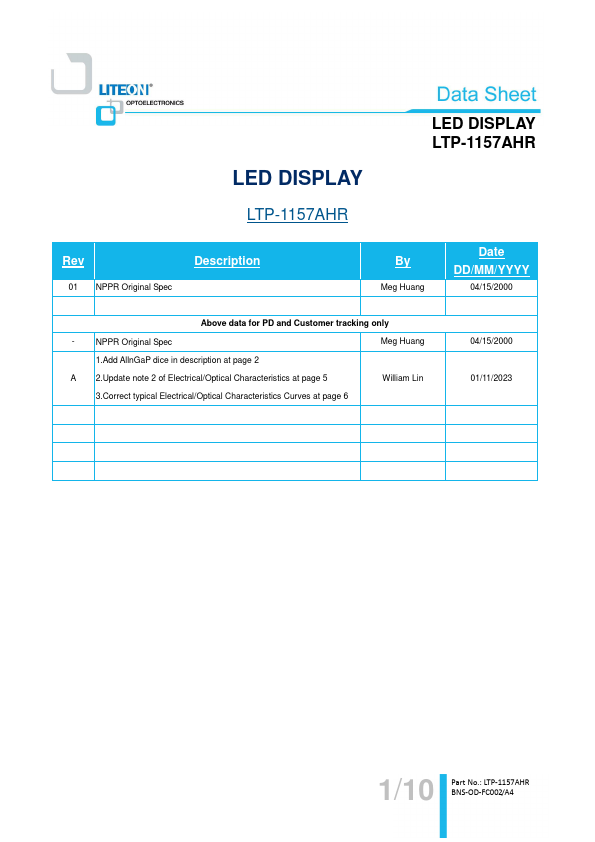

LTP-1157AHR Datasheet Preview Page 2 LTP-1157AHR Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-1157AHR

Manufacturer:

LITE-ON

File Size:

293.08 KB

Description:

Led display.
