LTP-15801KD Datasheet - LITE-ON

LTP-15801KD LED Display

The LTP-15801KD is a 1.5 inch (38 mm) digit height single digit 16-segment alphanumeric display. This device utilizes AlInGaP Hyper Red LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a black face and white segments. DEVICE PART NO. AlInGaP Hyper Red LTP-15801KD.

LTP-15801KD-LITEON.pdf

Preview of LTP-15801KD PDF

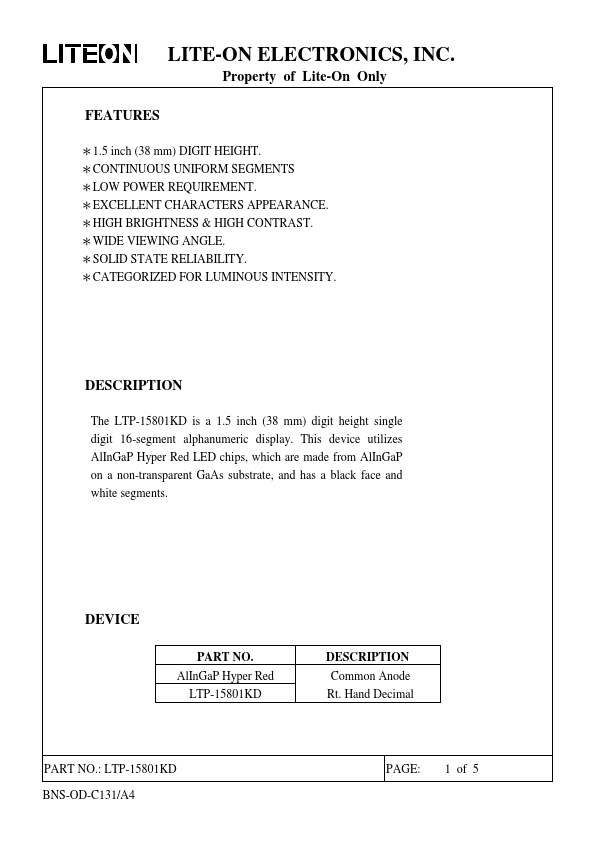

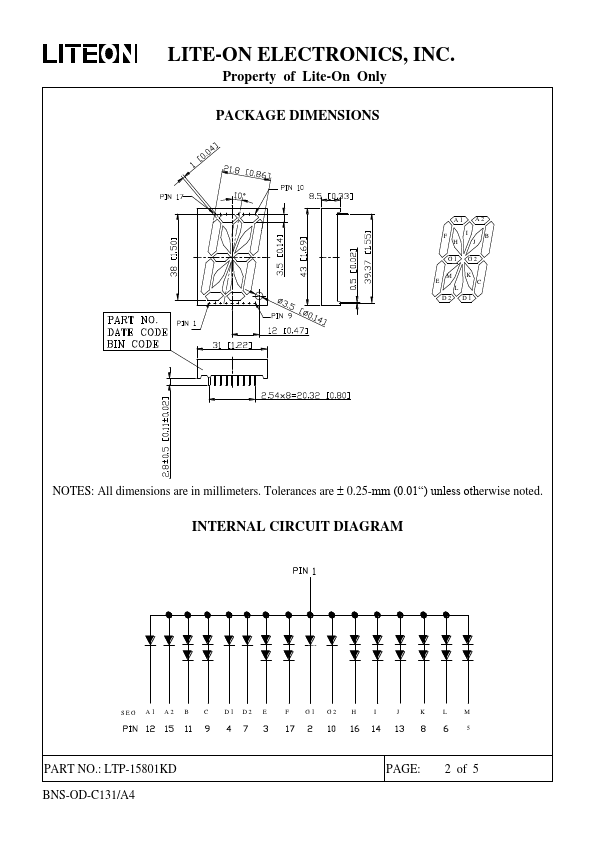

LTP-15801KD Datasheet Preview Page 2 LTP-15801KD Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-15801KD

Manufacturer:

LITE-ON

File Size:

377.14 KB

Description:

Led display.
