LTP-2557JD LED Display

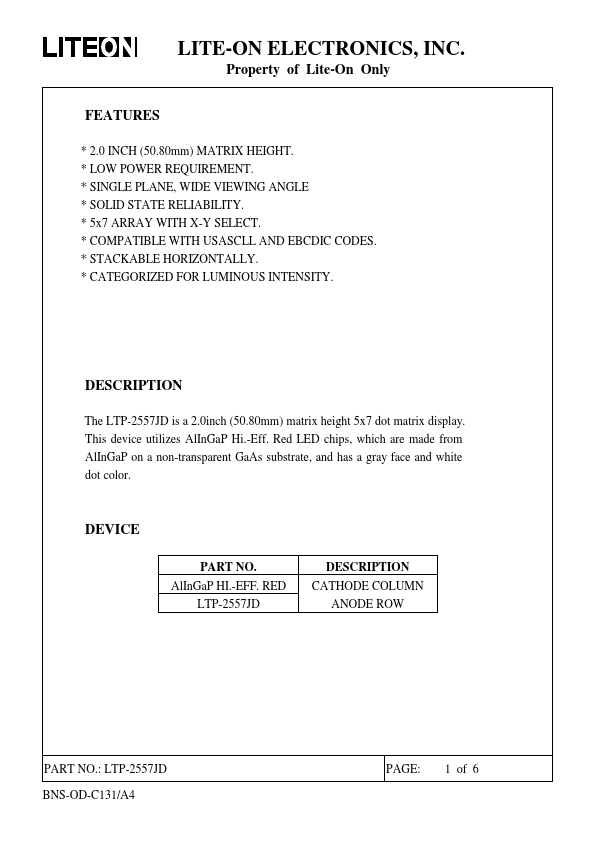

The LTP-2557JD is a 2.0inch (50.80mm) matrix height 5x7 dot matrix display. This device utilizes AlInGaP Hi.-Eff. Red LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a gray face and white dot color. DEVICE PART NO. AlInGaP HI.-EFF. RED LTP-2557JD DESCRIPTION CA.

LTP-2557JD Features

* 2.0 INCH (50.80mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 5x7 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIP

LTP-2557JD-LITEON.pdf

LTP-2557JD Datasheet Preview — Preview of LTP-2557JD PDF

Datasheet Details

Part number:

LTP-2557JD

Manufacturer:

LITE-ON

File Size:

355.96 KB

Description:

Led display.
