LTP-2558AA LED Display

The LTP-2558AA is a 2.3 inch (58.42 mm) matrix height 5x8 dot matrix display. This device is multicolor applicable display, which has gray face and white dot color. The red orange LED chips are made from GaAsP on a transparent GaP substrate. The green LED chips are made from GaP on a transparent GaP.

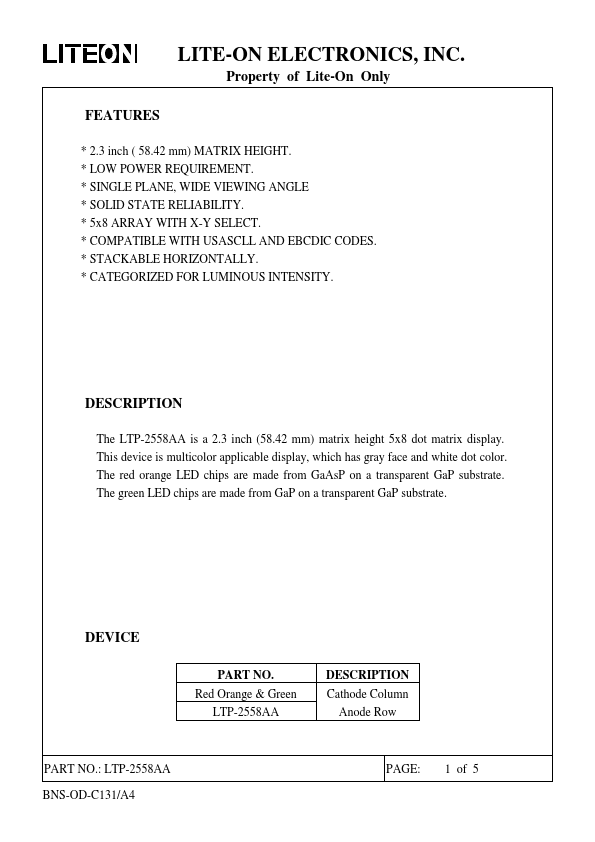

LTP-2558AA Features

* 2.3 inch ( 58.42 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 5x8 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRI

LTP2558AA_LITE-ONElectronics.pdf

LTP-2558AA Datasheet Preview — This datasheet PDF includes multiple part numbers: LTP-2558AA, LTP2558AA_LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTP-2558AA, LTP2558AA_LITE

Manufacturer:

LITE-ON Electronics

File Size:

377.60 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTP-2558AA, LTP2558AA_LITE.
Please refer to the document for exact specifications by model.
