LTP-2757AA Datasheet - LITE-ON

LTP-2757AA LED Display

The LTP-2757AA is a 2 inch (50.8 mm) matrix height 5x7 dot matrix display. This device is multicolor applicable display, which has gray face and white dot color. The red orange LED chips are made from GaAsP on a transparent GaP substrate. The green LED chips are made from GaP on a transparent GaP su.

LTP-2757AA Features

* 2 inch ( 50.8 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 5x7 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIPT

LTP-2757AA Datasheet (381.12 KB)

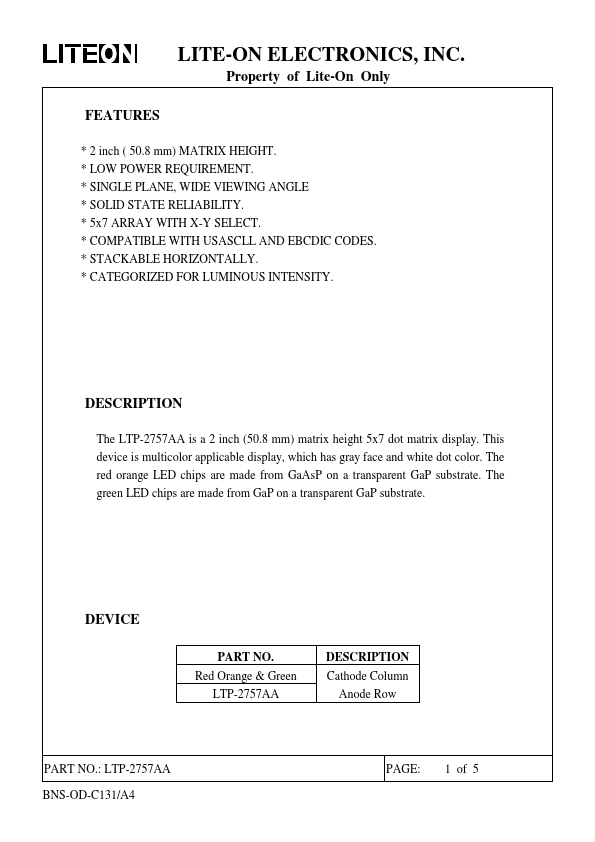

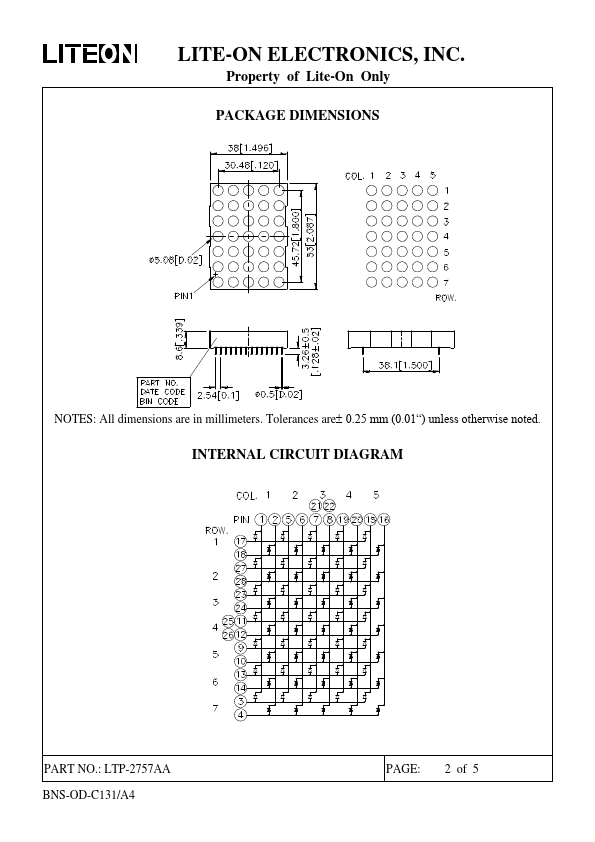

LTP-2757AA Datasheet Preview — Preview of LTP-2757AA PDF

Datasheet Details

Part number:

LTP-2757AA

Manufacturer:

LITE-ON

File Size:

381.12 KB

Description:

Led display.
