LTP-2B88AG-NB Datasheet - LITE-ON

LTP-2B88AG-NB LED Display

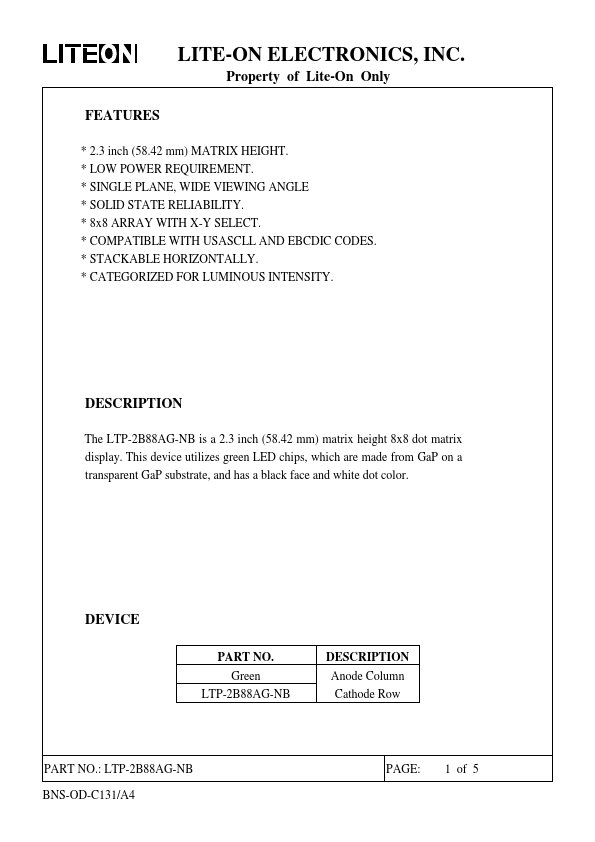

The LTP-2B88AG-NB is a 2.3 inch (58.42 mm) matrix height 8x8 dot matrix display. This device utilizes green LED chips, which are made from GaP on a transparent GaP substrate, and has a black face and white dot color. DEVICE PART NO. Green LTP-2B88AG-NB DESCRIPTION Anode Column Cathode Row PART N.

LTP-2B88AG-NB Features

* 2.3 inch (58.42 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 8x8 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIP

LTP-2B88AG-NB Datasheet (380.78 KB)

LTP-2B88AG-NB Datasheet Preview — Preview of LTP-2B88AG-NB PDF

Datasheet Details

Part number:

LTP-2B88AG-NB

Manufacturer:

LITE-ON

File Size:

380.78 KB

Description:

Led display.
