LTP-4823G Datasheet - LITE-ON

LTP-4823G LED Display

The LTP-4823G is a is a 0.4 inch (10 mm) digit height dual digit seven-segment display. This device utilizes green LED chips, which are made from GaP on a transparent GaP substrate, and has a gray face and white segments. DEVICE PART NO. GREEN LTP-4823G DESCRIPTION DUPLEX COMMON ANODE RT. HAND DE.

LTP-4823G Features

* ＊0.4 inch (10.0-mm) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS. ＊LOW POWER REQUIREMENTS. ＊EXCELLENT CHARACTERS AND APPEARANCE. ＊HIGH CONTRAST. ＊HIGH BRIGHTNESS. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊COMMON ANODE OR COMMON CATHODE MODELS. ＊CATEGORIZED FOR LUMINOUS INTENSITY. ＊EASY MOUNTING

LTP-4823G Datasheet (380.80 KB)

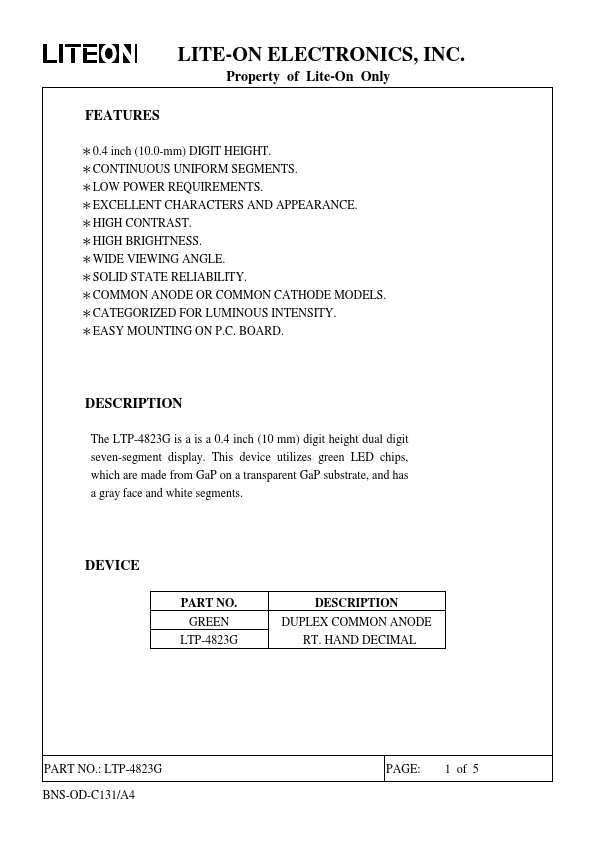

Preview of LTP-4823G PDF

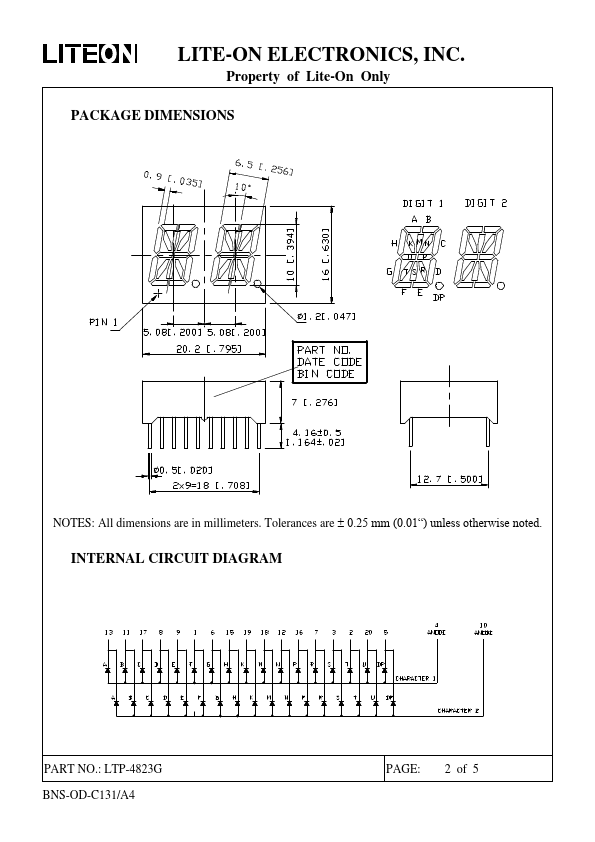

LTP-4823G Datasheet Preview Page 2 LTP-4823G Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-4823G

Manufacturer:

LITE-ON

File Size:

380.80 KB

Description:

Led display.
