LTP-4157AHR LED Display

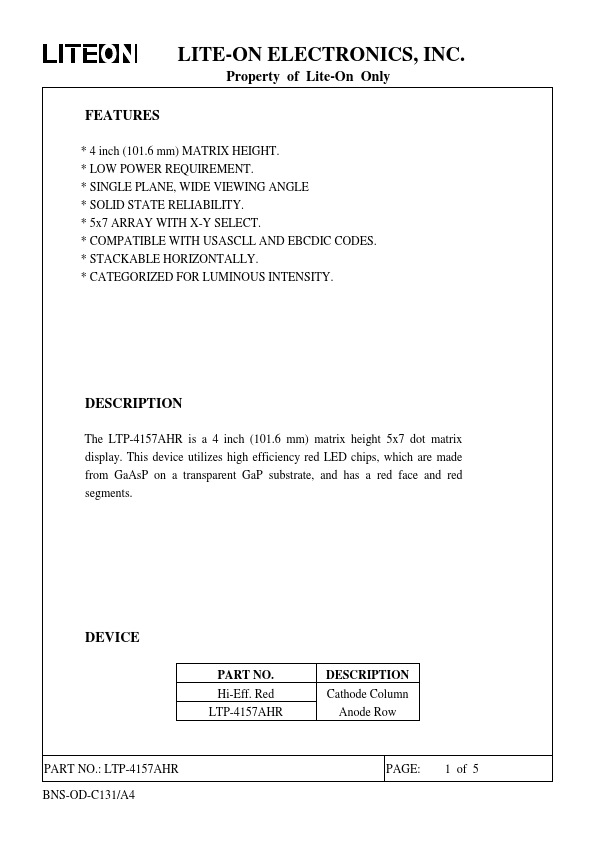

The LTP-4157AHR is a 4 inch (101.6 mm) matrix height 5x7 dot matrix display. This device utilizes high efficiency red LED chips, which are made from GaAsP on a transparent GaP substrate, and has a red face and red segments. DEVICE PART NO. Hi-Eff. Red LTP-4157AHR DESCRIPTION Cathode Column Anode .

LTP-4157AHR Features

* 4 inch (101.6 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 5x7 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIPTI

LTP-4157AHR_LITE-ONElectronics.pdf

LTP-4157AHR Datasheet Preview — This datasheet PDF includes multiple part numbers: LTP-4157AHR, LTP-4157AHR_LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTP-4157AHR, LTP-4157AHR_LITE

Manufacturer:

LITE-ON Electronics

File Size:

367.92 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTP-4157AHR, LTP-4157AHR_LITE.
Please refer to the document for exact specifications by model.
