LTP-7188KE Datasheet - LITE-ON

LTP-7188KE LED Display

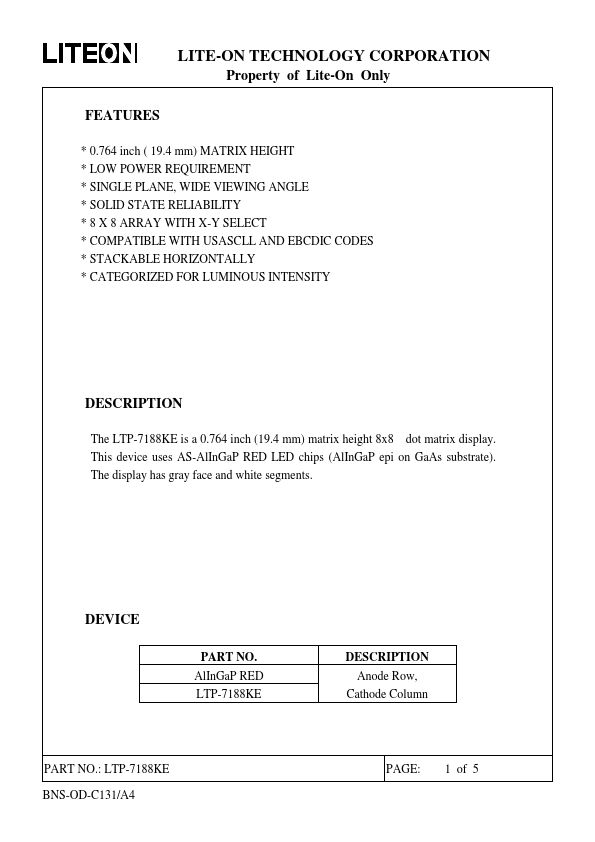

The LTP-7188KE is a 0.764 inch (19.4 mm) matrix height 8x8 dot matrix display. This device uses AS-AlInGaP RED LED chips (AlInGaP epi on GaAs substrate). The display has gray face and white segments. DEVICE PART NO. AlInGaP RED LTP-7188KE PART NO.: LTP-7188KE BNS-OD-C131/A4 DESCRIPTION Anode Row.

LTP-7188KE Features

* 0.764 inch ( 19.4 mm) MATRIX HEIGHT

* LOW POWER REQUIREMENT

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY

* 8 X 8 ARRAY WITH X-Y SELECT

* COMPATIBLE WITH USASCLL AND EBCDIC CODES

* STACKABLE HORIZONTALLY

* CATEGORIZED FOR LUMINOUS INTENSITY DESCRIPTIO

LTP-7188KE Datasheet (361.62 KB)

LTP-7188KE Datasheet Preview — Preview of LTP-7188KE PDF

Datasheet Details

Part number:

LTP-7188KE

Manufacturer:

LITE-ON

File Size:

361.62 KB

Description:

Led display.
