LTP-7357KS Datasheet - LITE-ON

LTP-7357KS LED Display

01 RDR Original Spec 02 Add height of reflector’s wall for protects splash of epoxy Due to adjusting the epoxy ratio for narrow the bin grade - NPPR Original Spec A Revise the product width’s tolerance on Page 2 of 6 from 12.6mm ±0.1mm to 12.6mm +0.18/-0.25mm By Phanomkorn J. March 18, 2009.

LTP-7357KS Features

* ＊0.678 inch ( 17.22 mm) MATRIX HEIGHT. ＊LOW POWER REQUIREMENT. ＊SINGLE PLANE, WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊5×7 ARRAY WITH X-Y SELECT. ＊COMPATIBLE WITH USASCII AND EBCDIC CODES. ＊STACKABLE HORIZONTALLY. ＊CATEGORIZED FOR LUMINOUS INTENSITY. ＊LEAD-FREE PACKAGE(ACCORDING TO ROHS) DESC

LTP-7357KS Datasheet (396.02 KB)

Preview of LTP-7357KS PDF

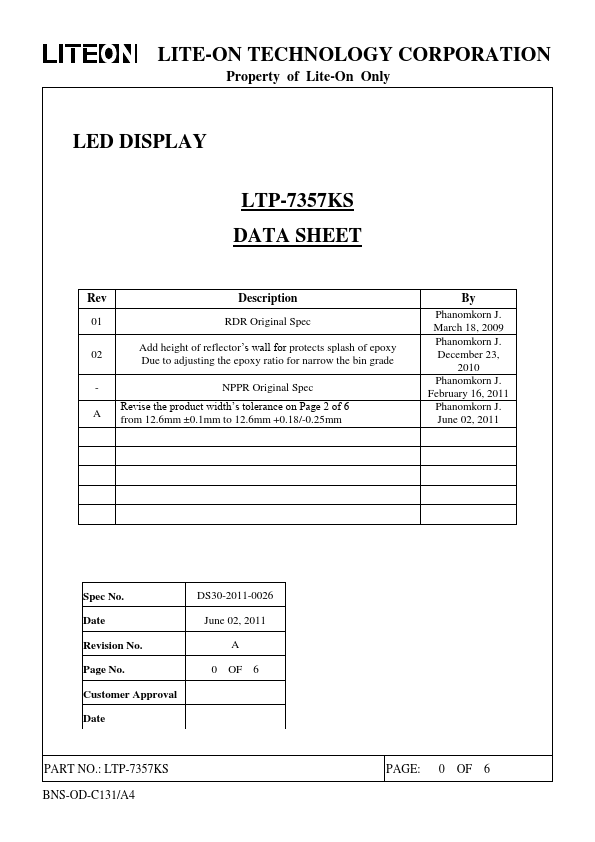

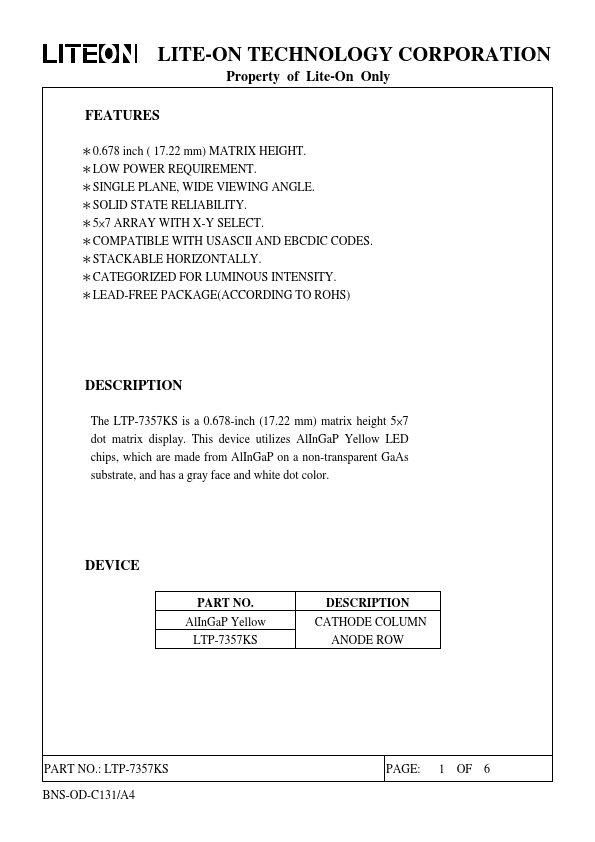

LTP-7357KS Datasheet Preview Page 2 LTP-7357KS Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-7357KS

Manufacturer:

LITE-ON

File Size:

396.02 KB

Description:

Led display.
