LTS-5501AS Datasheet - LITE-ON

LTS-5501AS LED Display

The LTS-5501AS is a 0.56 inch (14.22 mm) digit height single digit display. This device utilizes AlGaAs Red LED chips which are made from AlGaAs on a non-transparent GaAs substrate, and has a gray face and white segments. DEVICE PART NO. AlGaAs Red LTS-5501AS DESCRIPTION COMMON ANODE RT. HAND DEC.

LTS-5501AS Datasheet (406.27 KB)

Preview of LTS-5501AS PDF

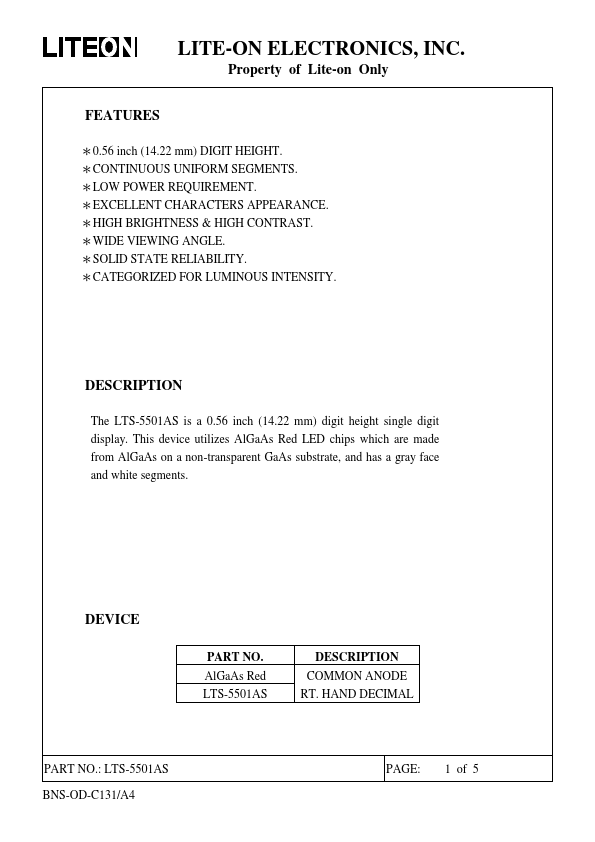

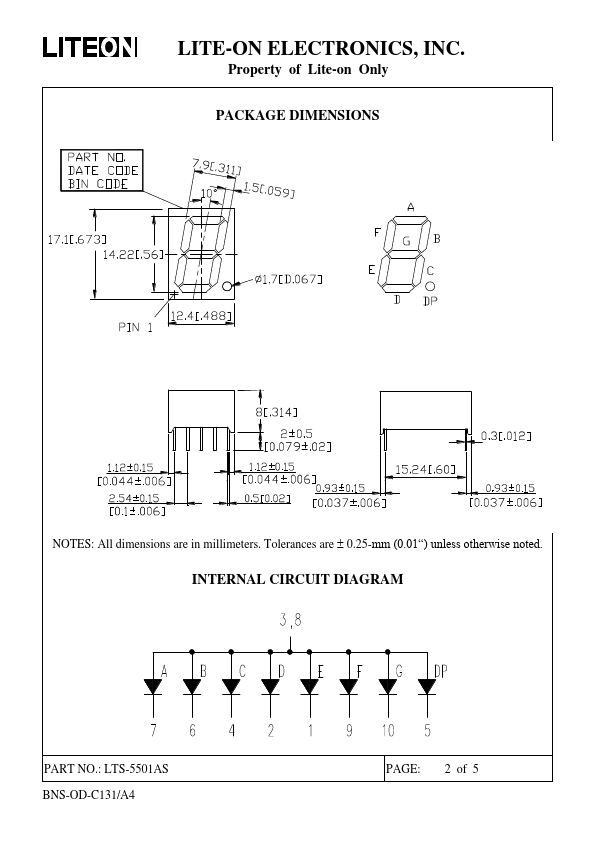

LTS-5501AS Datasheet Preview Page 2 LTS-5501AS Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-5501AS

Manufacturer:

LITE-ON

File Size:

406.27 KB

Description:

Led display.
