LTS-5501E Datasheet - LITE-ON

LTS-5501E LED Display

The LTS-5501E is a 0.56 inch (14.22 mm) digit height single digit display. This device utilizes red orange LED chips which are made from GaAsP on GaP substrate, and has a gray face and white segments. DEVICE PART NO. RED ORANGE LTS-5501E DESCRIPTION COMMON ANODE RT. HAND DECIMAL PART NO.: LTS-55.

LTS-5501E Datasheet (356.54 KB)

Preview of LTS-5501E PDF

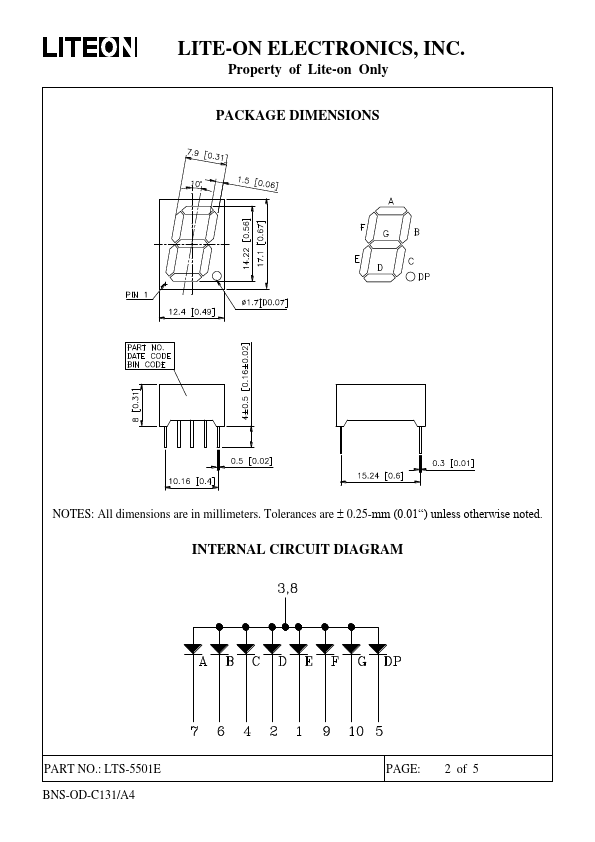

LTS-5501E Datasheet Preview Page 2 LTS-5501E Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-5501E

Manufacturer:

LITE-ON

File Size:

356.54 KB

Description:

Led display.
