LTV-341W-TA Photocoupler

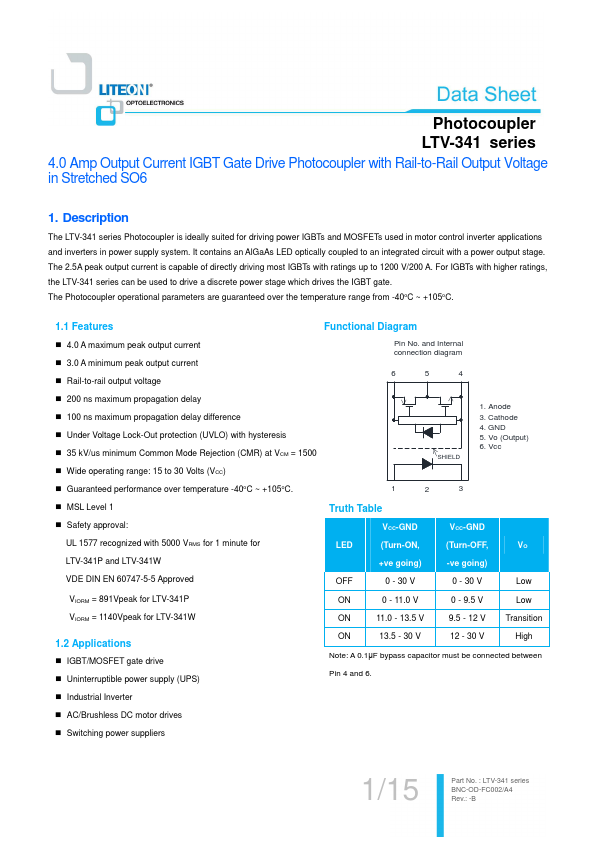

The LTV-341 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system. It contains an AlGaAs LED optically coupled to an integrated circuit with a power output stage. The 2.5A peak output current is capa.

LTV-341W-TA Features

* 4.0 A maximum peak output current 3.0 A minimum peak output current Rail-to-rail output voltage Functional Diagram Pin No. and Internal connection diagram 6 5 4 200 ns maximum propagation delay 100 ns maximum propagation delay difference Under Voltage Lock-Out protection (UVLO) with hysteresis
