LTV-480P-TA OPTOCOUPLER

The LTV-480 series fast speed photocoupler contains a AlGaAs LED and photo detector with built-in Schmitt trigger to provide logic-compatible waveforms, eliminating the need for additional wave shaping. The totem pole output eliminates the need for a pull up resistor and allows for direct drive Int.

LTV-480P-TA Features

* Positive output type (totem pole output)

* Truth Table Guaranteed: VCC from 4.5V to 30V

* Performance Specified for Common IPM Applications Over Industrial Temperature Range.

* Short Maximum Propagation Delays

* Minimized Pulse Width Distortion (PWD)

* Very High Common Mode

LTV-480P-TA Datasheet (718.61 KB)

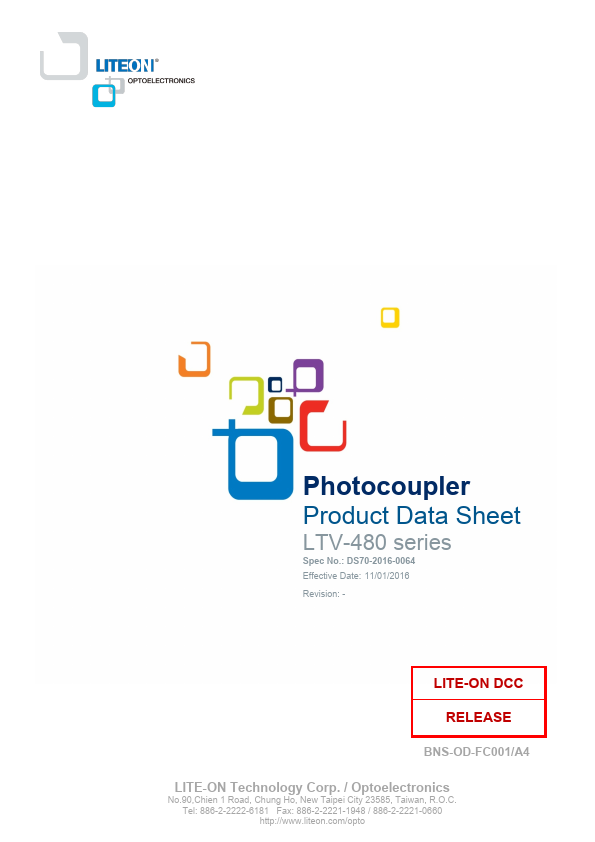

Preview of LTV-480P-TA PDF

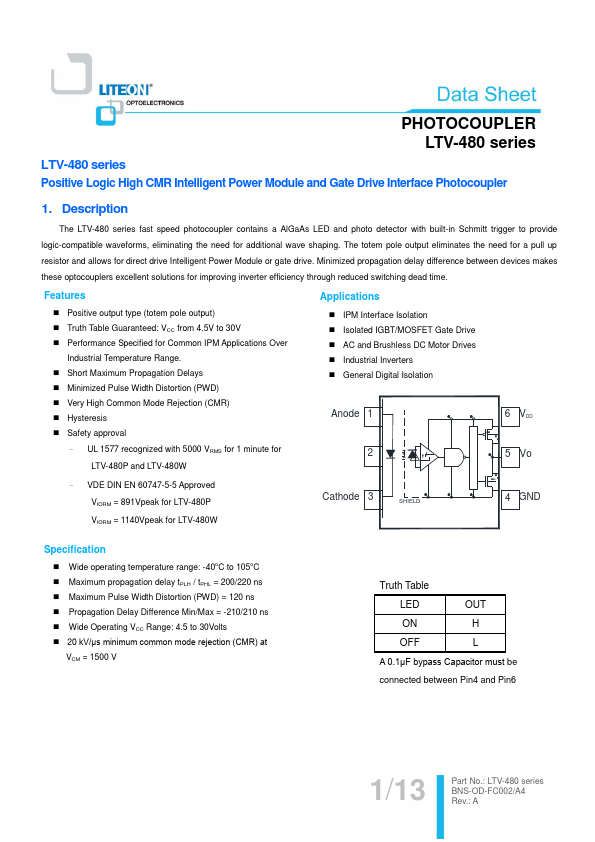

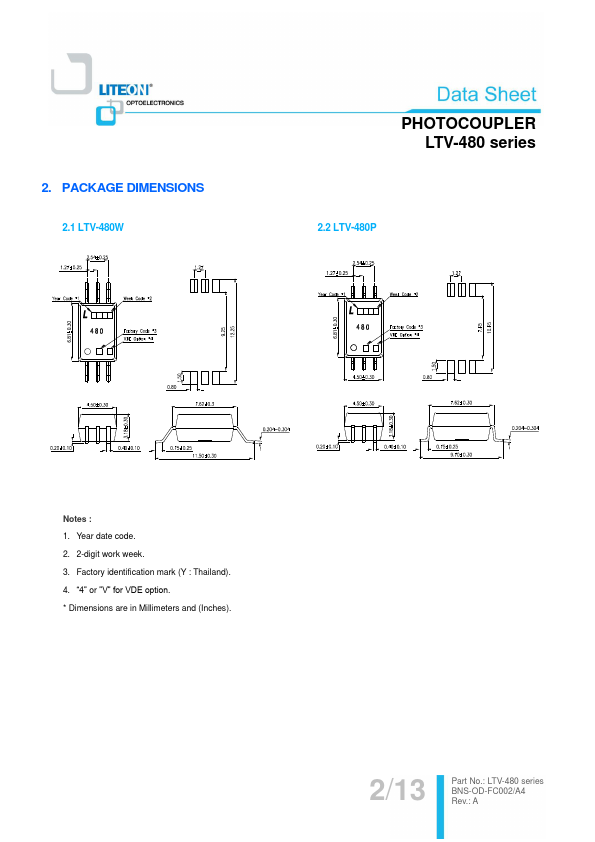

LTV-480P-TA Datasheet Preview Page 2 LTV-480P-TA Datasheet Preview Page 3

Datasheet Details

Part number:

LTV-480P-TA

Manufacturer:

LITE-ON

File Size:

718.61 KB

Description:

Optocoupler.
