LTV-480P OPTOCOUPLER

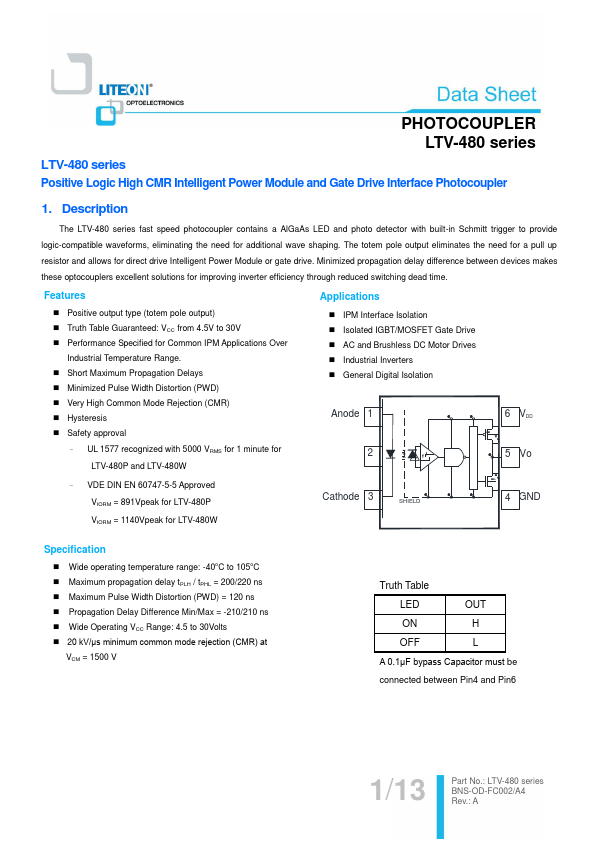

The LTV-480 series fast speed photocoupler contains a AlGaAs LED and photo detector with built-in Schmitt trigger to provide logic-compatible waveforms, eliminating the need for additional wave shaping. The totem pole output eliminates the need for a pull up resistor and allows for direct drive Int.

LTV-480P Features

* Positive output type (totem pole output)

* Truth Table Guaranteed: VCC from 4.5V to 30V

* Performance Specified for Common IPM Applications Over Industrial Temperature Range.

* Short Maximum Propagation Delays

* Minimized Pulse Width Distortion (PWD)

* Very High Common Mode

LTV-480P Datasheet (718.61 KB)
