LTV-824 Datasheet Photocoupler

Manufacturer: LITEON

Download the LTV-824 datasheet PDF. This datasheet also includes the LTV-814-LITE variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

LTV-824 photocoupler by LITEON - Datasheet Preview — Note: The manufacturer provides a single datasheet file (LTV-814-LITE-ON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	LTV-824
Manufacturer	LITEON
File Size	922.00 KB
Description	Photocoupler
Datasheet	LTV-824 Datasheet

General Description

1.1

Overview

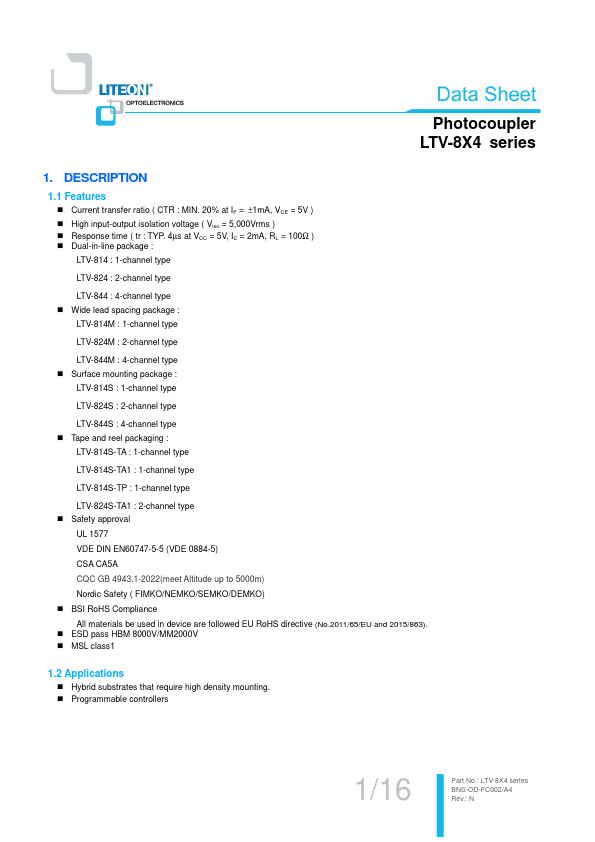

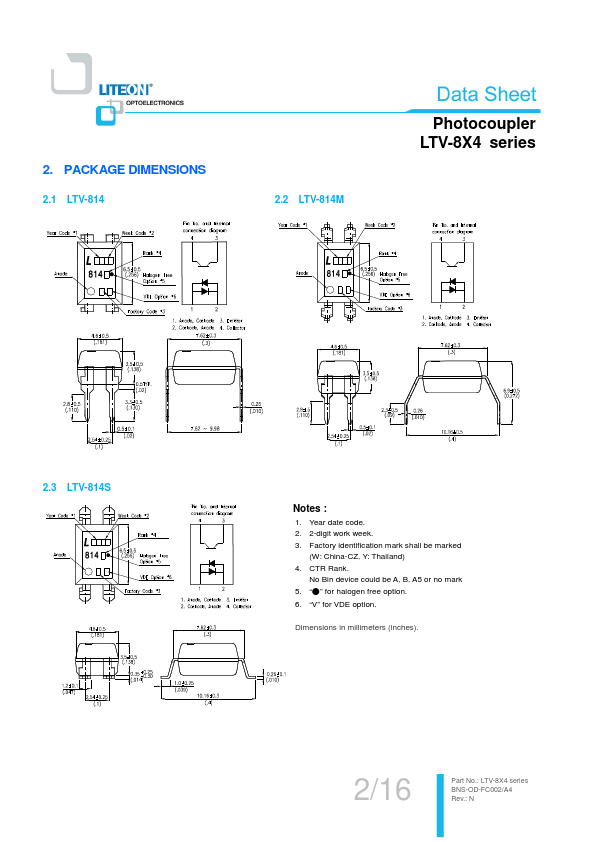

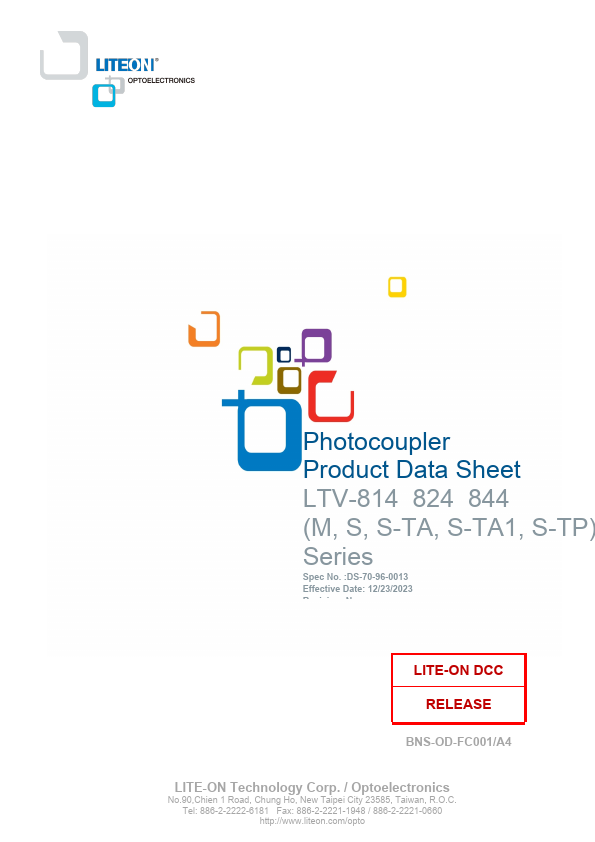

Photocoupler Product Data Sheet LTV-814 824 844 (M, S, S-TA, S-TA1, S-TP) Series Spec No.

:DS-70-96-0013 Effective Date: 12/23/2023 Revision: N LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp.

/ Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C.

Key Features

Current transfer ratio ( CTR : MIN. 20% at IF = ±1mA, VCE = 5V ).
High input-output isolation voltage ( Viso = 5,000Vrms ).
Response time ( tr : TYP. 4µs at VCC = 5V, IC = 2mA, RL = 100Ω ).
Dual-in-line package : LTV-814 : 1-channel type LTV-824 : 2-channel type LTV-844 : 4-channel type.
Wide lead spacing package : LTV-814M : 1-channel type LTV-824M : 2-channel type LTV-844M : 4-channel type.
Surface mounting package : LTV-814S : 1-channel type LTV-824S : 2-channel.
