3CA834 - SILICON PNP TRANSISTOR

Features

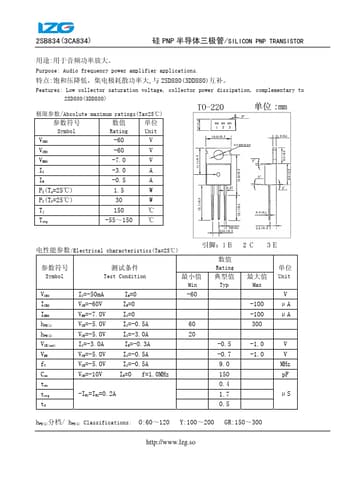

  • Low collector saturation voltage, collector power dissipation, complementary to 2SD880(3DD880) /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO -60 V VCEO -60 V VEBO -7.0 V IC -3.0 A IB -0.5 A PC(Ta=25℃) 1.5 W PC(TC=25℃) 30 W Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol Test Condition VCEO ICBO IEBO hFE(1) hFE(2) VCE(sat) VBE fT Cob ton tstg tf IC=-50mA VCB=-60V VEB=-7.0V VCE=-5.0V VCE=-5.0V IC=-3.0A VCE=-5.0V VCE=-5.0V VCB=-10V.
