BZY91 - Zeners/Studs

Features

  • Voltage range 7.5 - 75 Volts.
  • 5000 Watt peak pulse power.
  • 100 Watt steady state @ 25°C.
  • 75 Watt steady state @ 65°C.
  • Glass passivated junction.
  • 5000 Watt surge capability at 1 ms.
  • Typically IR less than1 µA above 10V.
  • Excellent clamping capability.
  • Stud cathode & stud anode.
  • Operating temperature -55°C to +175°C.
  • 100% tested.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BZY91 Zener Diodes America Semiconductor
BZY91 REGULATOR DIODES Philips
BZY91C10 Zeners Crydom
BZY91C10 100 WATT ZENER DIODES Digitron Semiconductors
BZY91C10 Zener Diodes Naina Semiconductor

Other Datasheets by Littelfuse

Part Number Description
BZY91C10 Zeners
BZY91C10R Zeners
BZY91C11 Zeners
BZY91C11R Zeners
BZY91C12 Zeners

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

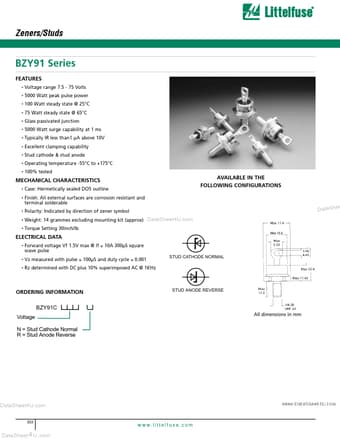

www.DataSheet4U.com Zeners/Studs BZY91 Series FEATURES • Voltage range 7.5 - 75 Volts • 5000 Watt peak pulse power • 100 Watt steady state @ 25°C • 75 Watt steady state @ 65°C • Glass passivated junction • 5000 Watt surge capability at 1 ms • Typically IR less than1 µA above 10V • Excellent clamping capability • Stud cathode & stud anode • Operating temperature -55°C to +175°C • 100% tested MECHANICAL CHARACTERISTICS • Case: Hermetically sealed DO5 outline • Finish: All external surfaces are corrosion resistant and AVAILABLE IN THE FOLLOWING CONFIGURATIONS terminal solderable • Polarity: Indicated by direction of zener symbol • Weight: 14 grammes excluding mounting kit (approx) • Torque Setting 30inch/lb e DataShe DataSheet4U.com ELECTRICAL DATA • Forward voltage Vf 1.
