SJ4012V1TP, SJ4012R1TP Datasheet - Littelfuse

SJ4012V1TP, SJ4012R1TP, 12Amp High Junction Temperature SCR

This SJxx12xx high junction temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls, converters/ rectifiers, inrush current control and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 6mA, 10mA.

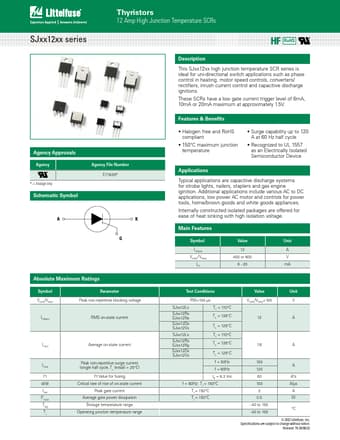

Datasheet Preview Page 1

SJ4012R1TP-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SJ4012V1TP, SJ4012R1TP. Please refer to the document for exact specifications by model.
SJ4012V1TP Datasheet Preview Page 2 SJ4012V1TP Datasheet Preview Page 3

Datasheet Details

Part number:

SJ4012V1TP, SJ4012R1TP

Manufacturer:

Littelfuse ↗

File Size:

497.11 KB

Description:

12Amp High Junction Temperature SCR

Note:

This datasheet PDF includes multiple part numbers: SJ4012V1TP, SJ4012R1TP.
Please refer to the document for exact specifications by model.

SJ4012V1TP Features

* & Benefits

* Halogen free and RoHS compliant

* 150°C maximum junction temperature

* Surge capability up to 120 A at 60 Hz half cycle

* Recognized to UL 1557 as an Electrically Isolated Semiconductor Device Applications Typical applications are capacitive discha
