SMA01N-09 - 1W DC-DC Unregulated Single Output Converter
MEAN WELL
Download the SMA01N-09 datasheet PDF.
This datasheet also covers the SMA01 variant, as both devices belong to the same 1w dc-dc unregulated single output converter family and are provided as variant models within a single manufacturer datasheet.
Key Features
: 1500VDC I/O isolation 3000VDC I/O isolation(optional) Operating temperature range of -40 ~ +85 Internal SMD technology Built-in EMI filter Cooling by free air convection Non-conductive plastic case Dual in line package Industry standard pinout 100% burn-in test Low cost / High reliability 2 years warranty
without derating
SMA01N-05 77%
SMA01L-09 9V 0 ~ 110mA 77%
SMA01M-09
SMA01N-09
78% 75%
ORDER NO. SMA01L-12
SMA01M-12
SMA01N-12
SMA01L-15
SMA01M-15
SMA01N-15
DC OUTPUT.
Full PDF Text Transcription for SMA01N-09 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
SMA01N-09. For precise diagrams, and layout, please refer to the original PDF.

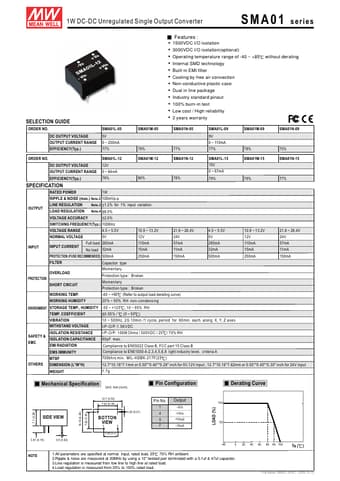

1W DC-DC Unregulated Single Output Converter SMA01 series SELECTION GUIDE ORDER NO. DC OUTPUT VOLTAGE OUTPUT CURRENT RANGE EFFICIENCY(Typ.) SMA01L-05 5V 0 ~ 200mA 77% SMA...
View more extracted text
E OUTPUT CURRENT RANGE EFFICIENCY(Typ.) SMA01L-05 5V 0 ~ 200mA 77% SMA01M-05 79% Features : 1500VDC I/O isolation 3000VDC I/O isolation(optional) Operating temperature range of -40 ~ +85 Internal SMD technology Built-in EMI filter Cooling by free air convection Non-conductive plastic case Dual in line package Industry standard pinout 100% burn-in test Low cost / High reliability 2 years warranty without derating SMA01N-05 77% SMA01L-09 9V 0 ~ 110mA 77% SMA01M-09 SMA01N-09 78% 75% ORDER NO. SMA01L-12 SMA01M-12 SMA01N-12 SMA01L-15 SMA01M-15 SMA01N-15 DC OUTPUT VOLTAGE 12V OUTPUT CURRENT RANGE 0 ~ 84mA 15V 0 ~ 67mA EFFICIENCY
