MP86920GLV, MP86920 Datasheet - MPS

MP86920GLV, MP86920, monolithic half-bridge driver

The MP86920 is a monolithic half-bridge driver with built-in internal power MOSFETs and gate drivers. It achieves 20A of continuous output current across a wide input supply range. The integrated driver and MOSFETS result in high efficiency due to an optimal dead time and reduced parasitic inductanc.

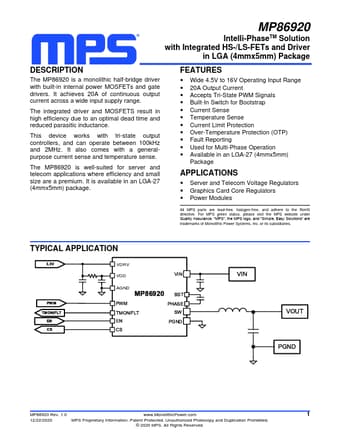

Datasheet Preview Page 1

MP86920-MPS.pdf

MP86920GLV Datasheet Preview — This datasheet PDF includes multiple part numbers: MP86920GLV, MP86920. Please refer to the document for exact specifications by model.

MP86920GLV Datasheet Preview Page 2

MP86920GLV Datasheet Preview Page 3

Datasheet Details

Part number:

MP86920GLV, MP86920

Manufacturer:

MPS

File Size:

1.32 MB

Description:

monolithic half-bridge driver

Note:

This datasheet PDF includes multiple part numbers: MP86920GLV, MP86920.
Please refer to the document for exact specifications by model.

MP86920GLV Features

* Wide 4.5V to 16V Operating Input Range

* 20A Output Current

* Accepts Tri-State PWM Signals

* Built-In Switch for Bootstrap

* Current Sense

* Temperature Sense

* Current Limit Protection

* Over-Temperature Protection (OTP)

* Fault Reporting

* Used for Multi-
