MAX11130 Datasheet 8-/16-Channel ADCs

Manufacturer: Maxim Integrated (now Analog Devices)

Download the MAX11130 datasheet PDF. This datasheet also includes the MAX11129 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX11129-MaximIntegrated.pdf) that lists specifications for multiple related part numbers.

General Description

Benefits and

Overview

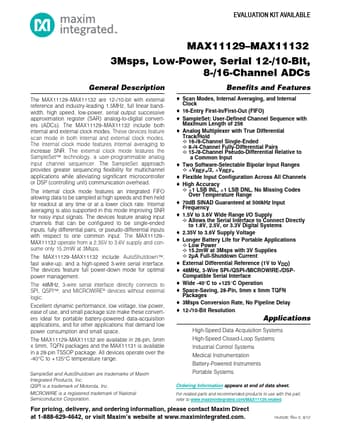

EVALUATION KIT AVAILABLE MAX11129–MAX11132 3Msps, Low-Power, Serial 12-/10-Bit, 8-/16-Channel ADCs.

Key Features

  • The MAX11129.
  • MAX11132 are 12-/10-bit with external reference and industry-leading 1.5MHz, full linear bandwidth, high speed, low-power, serial output successive approximation register (SAR) analog-to-digital converters (ADCs). The MAX11129.
  • MAX11132 include both internal and external clock modes. These devices feature scan mode in both internal and external clock modes. The internal clock mode features internal averaging to increase SNR. The external clock mode features the Sampl.
