MAX38800 - Step-Down Switching Regulator

Description

The MAX38800 is a fully integrated, highly efficient switching regulator for applications operating from 6.5V to 14V input supplies that require up to 9A maximum load.

Features

  • include: internal/external reference voltage, output voltage set-point, switching frequency, overcurrent protection level (OCP), and soft-start timing. Discontinuous current mode (DCM) operation can be enabled using pinstrapping to improve light-load efficiency. The MAX38800 includes multiple protection and measurement features. Positive and negative cycle-bycycle OCP, short-circuit protection and overtemperature protection (OTP) ensure robust design. Input un.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX3880 +3.3V / 2.488Gbps / SDH/SONET 1:16 Deserializer Maxim
MAX388 High-Voltage / Fault-Protected Analog Multiplexers Maxim
MAX3881 SDH/SONET 1:16 Deserializer Maxim Integrated Products
MAX3882 2.488Gbps/2.67Gbps 1:4 Demultiplexer Maxim Integrated Products
MAX3882A 2.488Gbps 1:4 Demultiplexer Maxim Integrated Products

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX38801 Step-Down Switching Regulator
MAX38888 0.5A/2.5A Reversible Buck/Boost Regulator
MAX3801 3.2Gbps Adaptive Equalizer
MAX3825 2.5Gbps Quad Transimpedance Amplifier
MAX3832 4-Channel Interconnect Mux/Demux ICs

Full PDF Text Transcription

Click to expand full text

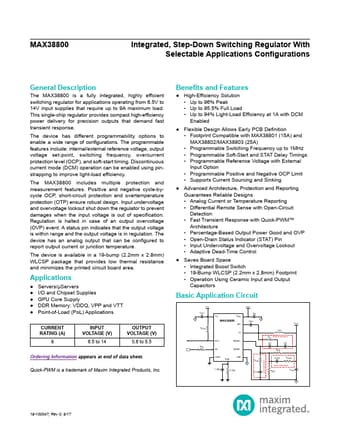

MAX38800 Integrated, Step-Down Switching Regulator With Selectable Applications Configurations General Description The MAX38800 is a fully integrated, highly efficient switching regulator for applications operating from 6.5V to 14V input supplies that require up to 9A maximum load. This single-chip regulator provides compact high-efficiency power delivery for precision outputs that demand fast transient response. The device has different programmability options to enable a wide range of configurations. The programmable features include: internal/external reference voltage, output voltage set-point, switching frequency, overcurrent protection level (OCP), and soft-start timing. Discontinuous current mode (DCM) operation can be enabled using pinstrapping to improve light-load efficiency.
