MAX1823B - Dual USB Switch

Download the MAX1823B datasheet PDF. This datasheet also covers the MAX1823 variant, as both devices belong to the same dual usb switch family and are provided as variant models within a single manufacturer datasheet.

Description

The MAX1823 is a dual, current-limited switch with autoreset specifically made for USB applications.

The autoreset feature latches the switch off if the output is shorted, saving system power.

The switch reactivates when the short circuit is removed.

Features

  • to ensure that the USB port is protected. Built-in thermal-overload protection limits power dissipation and junction temperature. Accurate internal current-limiting circuitry protects the input supply against both overload and short-circuit conditions. Independent fault signals (FAULTA and FAULTB) notify the microprocessor (µP) when a thermal-overload, current-limit, undervoltagelockout (UVLO), or short-circuit fault occurs. A 20ms fault-blanking feature ignores momentary faults, such as those c.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX1823_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX182 Calivrated 4-Channel 12-Bit ADC with T/H and Refernce Maxim
MAX1822 High-Side Power Supply Maxim
MAX180 Complete / 8-Channel / 12-Bit Data-Acquisition Systems Maxim
MAX1800 Digital Camera Step-Up Power Supply Maxim
MAX18000 500mV to 5.5V Input nanoPower Boost Converter Analog Devices

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX1823 Dual USB Switch
MAX1823A Dual USB Switch
MAX1823H Dual USB Switch
MAX1820 WCDMA Cellular Phone 600mA Buck Regulators
MAX1821 WCDMA Cellular Phone 600mA Buck Regulators

Full PDF Text Transcription

Click to expand full text

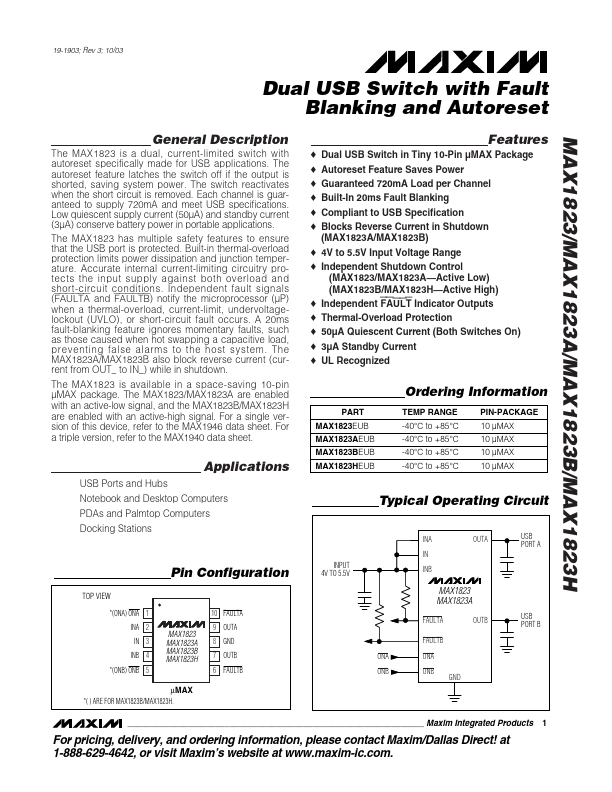

19-1903; Rev 3; 10/03 MAX1823/MAX1823A/MAX1823B/MAX1823H Dual USB Switch with Fault Blanking and Autoreset General Description The MAX1823 is a dual, current-limited switch with autoreset specifically made for USB applications. The autoreset feature latches the switch off if the output is shorted, saving system power. The switch reactivates when the short circuit is removed. Each channel is guaranteed to supply 720mA and meet USB specifications. Low quiescent supply current (50µA) and standby current (3µA) conserve battery power in portable applications. The MAX1823 has multiple safety features to ensure that the USB port is protected. Built-in thermal-overload protection limits power dissipation and junction temperature.
