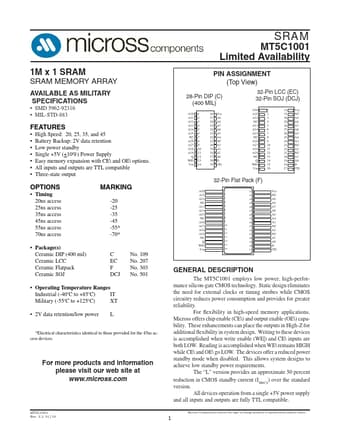

MT5C1001
MT5C1001 is 1M x 1 SRAM manufactured by Micross.
FEATURES
- High Speed: 20, 25, 35, and 45
- Battery Backup: 2V data retention
- Low power standby
- Single +5V (+10%) Power Supply
- Easy memory expansion with CE and OE options.
- All inputs and outputs are TTL patible
- Three-state output
OPTIONS
- Timing 20ns access 25ns access 35ns access 45ns access 55ns access 70ns access
MARKING
-20 -25 -35 -45 -55- -70-
- Package(s) Ceramic DIP (400 mil) Ceramic LCC Ceramic Flatpack Ceramic SOJ
No. 109
EC No. 207
No. 303
DCJ No. 501
- Operating Temperature Ranges
Industrial (-40o C to +85o C)
Military (-55o C to +125o C)
- 2V data retention/low power L
- Electrical characteristics identical to those provided for the 45ns access devices.
For more products and information please visit our web site at .micross.
PIN ASSIGNMENT (Top View)
28-Pin DIP (C) (400 MIL)
A10 1 A11 2 A12 3 A13 4 A14 5 A15 6 NC 7 A16 8 A17 9 A18 10 A19 11
Q 12 WE 13 Vss 14
28 Vcc 27 A9 26 A8 25 A7 24 A6 23 A5 22 A4 21 NC 20 A3 19 A2 18 A1 17 A0 16 D 15 CE
32-Pin LCC (EC) 32-Pin SOJ (DCJ)
A10
A11
A12
A13...
