CM200DU-34KA - IGBT Module

Mitsubishi Electric

Datasheet Details

Part number	CM200DU-34KA
Manufacturer	Mitsubishi Electric
File Size	102.40 KB
Description	IGBT Module
Datasheet	CM200DU-34KA Datasheet
Additional preview pages of the CM200DU-34KA datasheet.

📁 Similar Datasheet

CM200DU-34KA - Dual IGBT Module (Powerex Power Semiconductors)
CM200DU-12F - IGBT Module (Powerex Power Semiconductors)
CM200DU-12F - IGBT Module (Mitsubishi)
CM200DU-12H - IGBT Module (Mitsubishi Electric Semiconductor)
CM200DU-12H - Dual IGBT Module (Powerex Power Semiconductors)
CM200DU-24F - IGBT Module (Mitsubishi Electric Semiconductor)
CM200DU-24F - IGBT Module (Powerex Power Semiconductors)
CM200DU-24H - IGBT MODULES (Mitsubishi Electric Semiconductor)
CM200DU-24H - Dual IGBT Module (Powerex Power Semiconductors)
CM200DC-24NFM - Dual IGBT (Powerex)

Other Datasheets by Mitsubishi Electric

CM200DY-34A - IGBT Module
CM200RL-12NF - IGBT Module
CM20AD00-12H - IGBT MODULES
CM2400HC-34H - IGBT Module
CM2400HC-34N - IGBT Module

Full PDF Text Transcription

Click to expand full text

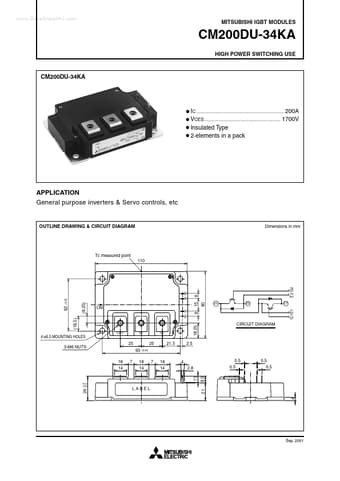

www.DataSheet4U.com MITSUBISHI IGBT MODULES CM200DU-34KA HIGH POWER SWITCHING USE CM200DU-34KA G IC ................................................................... 200A G VCES .......................................................... 1700V G Insulated Type G 2-elements in a pack APPLICATION General purpose inverters & Servo controls, etc OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm Tc measured point 110 E2 G2 62 ±0.25 15 (8.25) 80 C2E1 E2 C1 (18.5) 4-φ6.5 MOUNTING HOLES 3-M6 NUTS C2E1 E2 C1 25 93 ±0.25 18 14 7 18 14 25 21.5 2.5 18.25 CIRCUIT DIAGRAM 7 18 14 4 2.8 0.5 0.5 0.5 0.5 7.5 29 +1.0 –0.5 21 LABEL 8.5 Sep.
